Extract IP from URL & Country

This use case describes how to extract an IP address from a URL and a country.

Prerequisites

  • A Sekoia.io XDR licence
  • The user that configures the Playbook should have:
    • Be an Administrator or an Analyst of the community.
    • Have an API Key with a role that contains at least the permission "View alerts"

To create your API Key, follow this documentation.

Playbook configuration

Here is the playbook configuration to set:

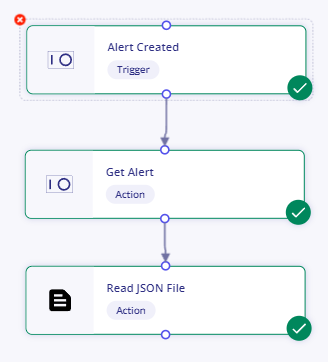

Playbook ExtractIP

Alert created => set module & trigger configuration Get Alert => uuid = short_id variables in Alert created

Extract IP from URL

For example, we would like to extract the IP 65.74.70.888 from url.original : /Service/Voice/SecuritySettings/111111/ManageIP/New/65.74.70.888

Read JSON File module, Jsonpath = {{ value.split()[0].split("/ManageIP/New/")[1] }}

This Jinja recipe consists in splitting the URL into 2 strings: the one preceding the string /ManageIP/New/ and the one succeeding it, which corresponds to the IP address.
The value is set with the second string stored in the array, with the use of [1].

Note

You can find the CODE Feature section in documentation page and in particular built-in filters existing in Jinja here.   (split is coming from Python)

Extract IP from Country

For example, we would like to extract the IP <ip> from https://rdap.db.ripe.net/ip/<ip>

Read JSON File, Jsonpath = {{ value.split()[0].split("/ip/")[1] }}
