Data model

The Sekoia Intelligence platform models all Cyber Threat Intelligence (CTI) using STIX 2.1 (Structured Threat Information eXpression), which is the OASIS standard for describing and exchanging threat intelligence. Sekoia is an active member of the OASIS CTI Technical Committee.

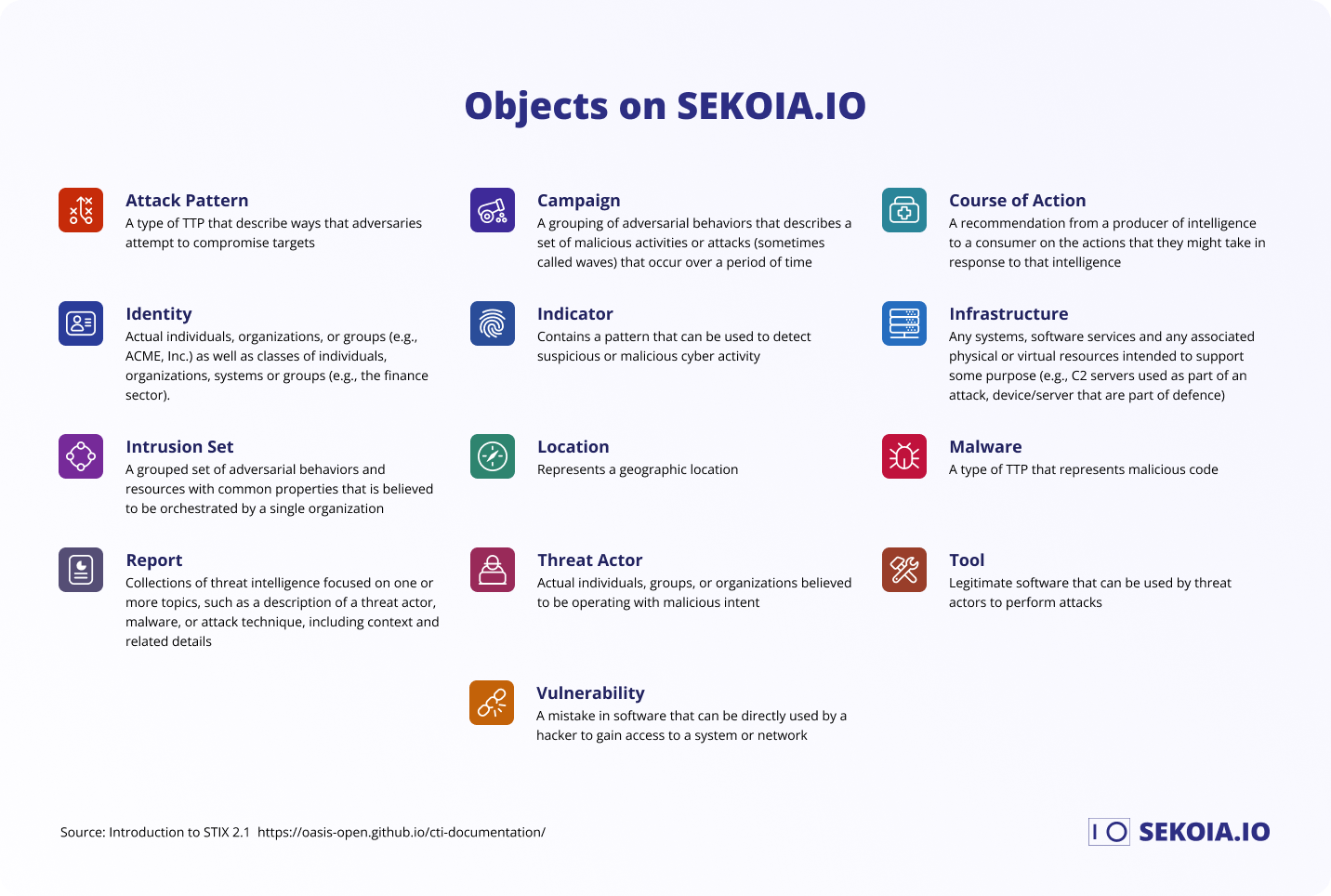

Objects

Objects represent the structural building blocks of Sekoia's intelligence knowledge. Each Object type answers a specific question an analyst needs to ask when investigating a threat: who is behind an attack, how did they operate, what did they use, where did it happen, etc.

Object types

Type Definition
Attack Pattern
Attack Pattern		 A specific technique or behavior an adversary uses to achieve a tactical goal (for example, exploiting a public-facing application). Sekoia maps each Attack Pattern to recognized TTP (tactics, techniques and procedures) frameworks such as MITRE ATT&CK and the Cyber Kill Chain, making it ready to use for behavior-based detection.
Campaign
Campaign		 A set of malicious activities or coordinated attacks conducted over a defined period of time to achieve a specific objective, usually impacting specific industries, regions, or assets. A Campaign ties together the malware, infrastructure, and TTPs used in that particular wave of attacks, distinguishing it from the intrusion set's activity as a whole.
Course of Action
Course of Action		 A recommended measure that could be taken in regard to a threat: a remediation, mitigation, or defensive action (for example, patching a vulnerability).
Identity
Identity		 An individual, organization, group, or class of entities, such as an industry sector (for example, the finance sector). In Sekoia, an Identity serves two roles: it can represent a victim or target of an attack, or a source that produces intelligence (Sekoia itself is represented as an Identity).
Indicator
Indicator		 A technical artifact that indicates suspicious or malicious activity, built on top of one or more Observables. Unlike a raw Observable, an Indicator is always contextualized: it carries a validity period, a confidence score, and a link to the threat it relates to (malware, campaign, intrusion set, etc.). Indicators are the objects exported through Sekoia's CTI feeds to trigger detection.
Infrastructure
Infrastructure		 The systems, software services, and virtual or physical resources used to support an operation (for example, Command-and-Control (C2) servers, proxies, or hosting used by an adversary).
Intrusion Set
Intrusion Set		 A structured set of adversarial behaviors, tools, and resources pursuing one or multiple goals over time. An Intrusion Set is broader than a single Campaign, representing the persistent activity of an attacker group. Intrusion Set entries within Sekoia intelligence are named in a vendor-agnostic way and list the known aliases used across the industry.
Report
Report		 A finished intelligence product (most often an investigation or an analysis) focused on one or several topics (for example, the profile of a threat actor, an intrusion, a malware family, or an attack technique). Beyond its narrative text, a Report contains structured references to all the STIX Objects it covers.
Location
Location		 A geographic area (a country, region, or part of the world) indicating the origin of a threat or the location of its victims. Locations add geographic context to Intrusion Sets, Campaigns, and other objects based on their provenance or targeting.
Threat Actor
Threat Actor		 A specific individual, group, or organization (including nation-state agencies that commission cyber operations) believed to act with malicious intent and the capability to execute cyberattacks. Unlike an Intrusion Set, which describes observed activity, a Threat Actor often refers to the entity behind it.
Vulnerability
Vulnerability		 A flaw, bug, or misconfiguration in software or hardware that an adversary can directly exploit to compromise a system or network (for example, a CVE). In Sekoia, vulnerabilities are linked to the threats known to exploit them.
Malware
Malware		 A malicious code designed to compromise the confidentiality, integrity, or availability of a system, such as ransomware, spyware, backdoors, rootkits, etc. A malware is contextualized with its Kill Chain and MITRE ATT&CK mapping, related intrusion Sets, Campaigns, and exportable Indicators.
Tool
Tool		 A legitimate software (utility or dual-use program not inherently malicious) that adversaries repurpose to carry out attacks, such as remote administration tools used for lateral movement. A tool's presence isn't malicious by itself, but its use in a given context can be.

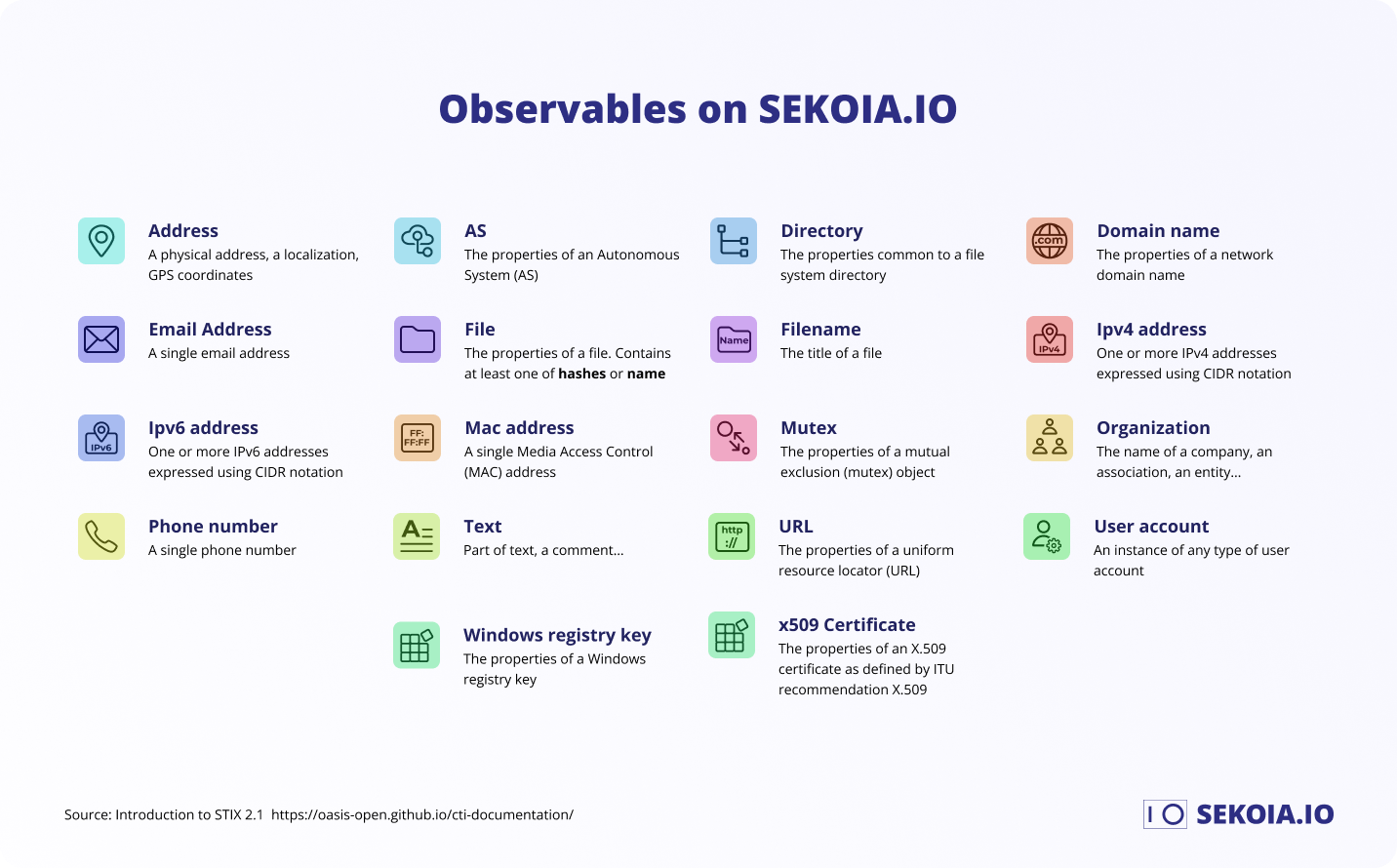

Observables

Observables are the raw technical artifacts collected from investigations, sandboxes, honeypots, and open sources. An observable is not inherently malicious and only becomes threat-relevant once it's converted in an Indicator or enriched with tags in the platform.

Observable types

Type Definition
Address
Address		 A generic technical identifier or physical/geographic location descriptor, used broadly before being classified into a more specific type such as an IPv4, IPv6, or MAC address.
Email Address
Email Address		 A single email address, used to track sender addresses in phishing campaigns or target addresses in spear-phishing.
Ipv4 address
Ipv4 address		 One or more IPv4 addresses, expressed using CIDR notation. Tracked to detect scanners, command-and-control servers, or exfiltration nodes.
Ipv6 address
Ipv6 address		 One or more IPv6 addresses, expressed using CIDR notation. Used to track modern internet infrastructure involved in command-and-control or scanning activity.
Phone number
Phone number		 A single phone number, often tracked in vishing or smishing campaigns, or as part of threat actor registration details.
AS (Autonomous System)
AS (Autonomous System)		 A large routing block on the internet, managed by a single administrative entity. AS observables are used to analyze the networks that host malicious infrastructure.
File
File		 The properties of a file, containing at least a hash or a name. Tracked using attributes like file paths, sizes, and cryptographic hashes (MD5, SHA-256) to identify known malicious payloads.
Mac address
Mac address		 A single Media Access Control (MAC) address (a unique 48-bit hardware identifier) assigned to a network interface, useful for internal host tracking during an investigation.
Text
Text		 A fragment of text, such as a comment or note, used to capture raw message content, configuration strings, or unstructured information collected from a source.
Windows registry key
Windows registry key		 A database entry used by the Windows operating system. Tracked to detect malware persistence mechanisms, privilege escalation, or unauthorized configuration changes.
Directory
Directory		 A file-system path container. Tracked to identify where malware is dropped, staged, or executed on a compromised host.
Filename
Filename		 The name string assigned to a file, used on its own to spot known malicious payloads or suspicious naming that mimics legitimate system files.
Mutex
Mutex		 A mutual exclusion object used by software to prevent multiple instances of a program from running at once. Malware often uses a unique, identifiable mutex name for this purpose.
URL (uniform resource locator)
URL (uniform resource locator)		 A complete web address, used to identify hosted malware payloads, phishing forms, or command-and-control endpoints.
x509 Certificate
x509 Certificate		 A public-key digital certificate, as defined by the ITU X.509 standard. Analyzed to uncover malicious TLS infrastructure or signed malware code.
Domain name
Domain name		 A human-readable network location string, mapped to one or more IP addresses. Frequently monitored to track malicious infrastructure or phishing sites.
Organization
Organization		 The name of a company, association, or other entity, tracked as an observable identity.
User account
User account		 An instance of a user account on any system. Monitored to detect credential stuffing, lateral movement, or unauthorized administrative access.
Crypto wallet
Crypto wallet		 Coming soon

Indicator versus Observable

Observable Indicator (IOC)
What it is A raw technical artifact An evidence of malicious activity, built on Observable(s) and enriched with context
Inherently malicious? No, for example, google.com is a valid, benign observable Yes, always tied to a specific threat
Comes with Optional tags for context A confidence score, a validity period, and a Kill Chain phase
Exported in CTI feeds? No Yes
Triggers real-time alerts in Sekoia? Not directly, only via tag-based detection rules Yes, including retro-hunting across historical logs, bounded by its validity period and log retention

External sources

One of the founding principles of the Intelligence Center is the consolidation of information coming from several sources.

Sources are represented in STIX by Identity objects.

Our consolidation strategy means that the created_by_ref field of the STIX objects is always set to the Sekoia Identity. The sources that contributed to one of our STIX Objects are available as references in the x_inthreat_sources_refs custom field.

As an example, here are parts of a Spearphishing Link object:

{
  "type": "attack-pattern",
  "name": "Spearphishing Link",
  "id": "attack-pattern--6cd1a813-ccdf-4ba0-9b54-cb808f1059cc",
  "created_by_ref": "identity--357447d7-9229-4ce1-b7fa-f1b83587048e",
  "x_inthreat_sources_refs": [
    "identity--357447d7-9229-4ce1-b7fa-f1b83587048e",
    "identity--c78cb6e5-0c4b-4611-8297-d1b8b55e40b5"
  ]
}

Confidence

STIX 2.1 adds an optional confidence field for an object creator to express how confident they are about the information.

When specified, this confidence level on objects should be read with the Admiralty Credibility scale.

Number Meaning Details
1 Confirmed by other sources Confirmed by other independent sources; logical in itself; consistent with other information on the subject
2 Probably true Not confirmed; logical in itself; consistent with other information on the subject
3 Possibly true Not confirmed; reasonably logical in itself; agrees with some other information on the subject
4 Doubtful Not confirmed; possible but not logical; no other information on the subject
5 Improbable Not confirmed; not logical in itself; contradicted by other information on the subject
6 Truth cannot be judged No basis exists for evaluating the validity of the information

Reliability

Next to the source, represented by the Identity object type, the confidence score may be specified to express the source's reliability. When specified, this reliability level should be read with the Admiralty Reliability scale.

Letter Meaning Details
A Completely reliable No doubt of authenticity, trustworthiness, or competency; has a history of complete reliability
B Usually reliable Minor doubt about authenticity, trustworthiness, or competency; has a history of valid information most of the time
C Fairly reliable Doubt of authenticity, trustworthiness, or competency but has provided valid information in the past
D Not usually reliable Significant doubt about authenticity, trustworthiness, or competency but has provided valid information in the past
E Unreliable Lacking in authenticity, trustworthiness, and competency; history of invalid information
F Reliability cannot be judged No basis exists for evaluating the reliability of the source
