Seckiot Citadelle

Overview

Seckiot Citadelle is an integrated cybersecurity platform designed for industrial control systems (ICS) and operational technology (OT) environments, providing comprehensive threat detection, asset discovery, and vulnerability management to safeguard critical infrastructure.

• Vendor: Seckiot
• Supported environment: On Premise & Cloud
• Version compatibility, if applicable: 25.5 and more
• Detection based on: Alerts, Telemetry
• Supported application or feature: Network protocol analysis

Specification

Prerequisites

• Network:
  • Outbound traffic allowed
• Permissions:
  • Administrator or Root access to the Seckiot Citadelle appliance

Transport Protocol/Method

• Direct HTTPS

Logs details

• Supported functionalities: See section Overview
• Supported type(s) of structure: JSON
• Supported verbosity level: Alert

Step-by-Step Configuration Procedure

Instruction on Sekoia

Configure Your Intake

This section will guide you through creating the intake object in Sekoia, which provides a unique identifier called the "Intake key." The Intake key is essential for later configuration, as it references the Community, Entity, and Parser (Intake Format) used when receiving raw events on Sekoia.

1. Go to the Sekoia Intake page.
2. Click on the + New Intake button at the top right of the page.
3. Search for your Intake by the product name in the search bar.
4. Give it a Name and associate it with an Entity (and a Community if using multi-tenant mode).
5. Click on Create.

Note

For more details on how to use the Intake page and to find the Intake key you just created, refer to this documentation.

Configure Seckiot Alert Forwarding

1. Log in to the Seckiot platform.
2. In the left panel, click on Capture architecture.

3. Click on Add -> Add a forwarder



4. Select the forwarder type Sekoia.io

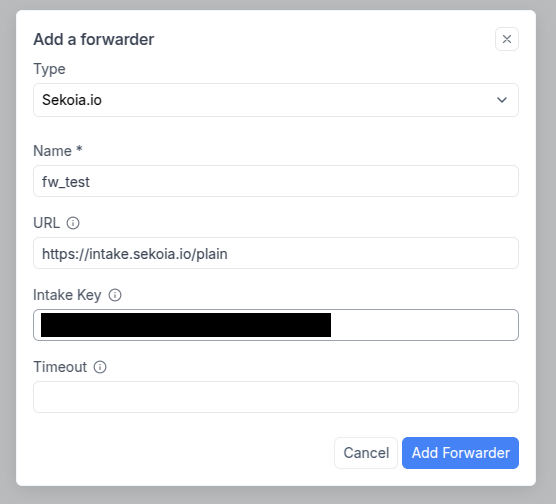

5. Enter a Name to identify the forwarder, then go back to the intake you created earlier in step Configure Your Intake in the Sekoia platform. Finally, copy your intake key into the Intake Key field.



6. Click Add Forwarder

Detection section

The following section provides information for those who wish to learn more about the detection capabilities enabled by collecting this intake. It includes details about the built-in rule catalog, event categories, and ECS fields extracted from raw events. This is essential for users aiming to create custom detection rules, perform hunting activities, or pivot in the events page.

Event Categories

The following table lists the data source offered by this integration.

Data Source	Description
Network intrusion detection system	Seckiot Citadelle identify suspicious behaviors by providing alerts logs
Network device logs	The logs provided by Seckiot Citadelle give a good overview of the network activity
Network protocol analysis	The logs offered by Seckiot Citadelle provide traffic analysis
Asset Management	Seckiot Citadelle identify all devices and provide a complete visibility

Transformed Events Samples after Ingestion

This section demonstrates how the raw logs will be transformed by our parsers. It shows the extracted fields that will be available for use in the built-in detection rules and hunting activities in the events page. Understanding these transformations is essential for analysts to create effective detection mechanisms with custom detection rules and to leverage the full potential of the collected data.

detection_purdue_level_string.jsondetection_purdue_level_zero.jsondetection_scan.jsondetection_udp_flood.jsonmaps_asset_create.jsonmaps_new_link.jsonmaps_new_server_port.jsonmaps_without_assets.jsonvulnerability.json

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":1,\"outcome\":\"unknown\",\"created\":\"2025-03-12T08:51:28.586238Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T08:51:28.586238Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"destination\":{\"vendor\":\"Fortinet, Inc.\",\"port\":58629,\"ip\":\"192.0.2.100\",\"mac\":\"02:00:00:00:00:05\"},\"skt\":{\"module\":\"Detection Engine\",\"sniffer\":\"11111111-1111-4111-8111-000000000010\",\"assets\":[{\"first_seen\":\"2025-03-05T12:37:56.174487Z\",\"last_seen\":\"2025-03-12T08:50:59.469469Z\",\"name\":\"fw01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"LANNER ELECTRONICS, INC.\",\"level\":\"2\",\"primary_ip\":\"11111111-1111-4111-8111-000000000011\",\"id\":\"11111111-1111-4111-8111-000000000014\",\"entity\":\"router\",\"description\":\"pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64\",\"localisation\":\"lab-192-0-2-101-ge-1-26.example.org\"},{\"system\":\"Windows\",\"first_seen\":\"2025-03-05T12:37:56.077529Z\",\"last_seen\":\"2025-03-12T08:51:00.348Z\",\"name\":\"gw01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"level\":3,\"primary_ip\":\"11111111-1111-4111-8111-000000000004\",\"id\":\"11111111-1111-4111-8111-000000000012\",\"entity\":\"router\",\"localisation\":\"lab-192-0-2-121-1-2-1.example.org\"}],\"capture_zone\":\"11111111-1111-4111-8111-000000000018\",\"session\":\"00000000000000000000000000000002\",\"alert_id\":\"11111111-1111-4111-8111-000000000003\",\"sensor\":\"SENSOR-0\"},\"@timestamp\":\"2025-03-12T08:51:28.586238Z\",\"network\":{\"transport\":\"UDP\",\"protocol\":\"dns\"},\"@version\":\"1\",\"source\":{\"vendor\":\"LANNER ELECTRONICS, INC.\",\"port\":53,\"ip\":\"203.0.113.254\",\"mac\":\"02:00:00:00:00:04\"},\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"rule\":{\"description\":\"Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.\",\"uuid\":\"51186749-7415-46be-90e5-000000000080\",\"name\":\"Network Service Discovery - UDP Scan Port\",\"version\":\"1\",\"author\":\"Seckiot\"}}\n",
    "event": {
        "category": [
            "intrusion_detection"
        ],
        "ingested": "2025-03-12T08:51:28.586238Z",
        "kind": "alert",
        "provider": "Detection Engine",
        "severity": 1,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T08:51:28.586238Z",
    "destination": {
        "address": "192.0.2.100",
        "ip": "192.0.2.100",
        "mac": "02:00:00:00:00:05",
        "port": 58629
    },
    "device": {
        "manufacturer": [
            "LANNER ELECTRONICS, INC.",
            "VMware, Inc."
        ]
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000012",
            "11111111-1111-4111-8111-000000000014"
        ],
        "name": [
            "fw01.example.com",
            "gw01.example.com"
        ],
        "os": {
            "name": [
                "Windows"
            ]
        },
        "type": [
            "router",
            "router"
        ]
    },
    "network": {
        "protocol": "dns",
        "transport": "udp"
    },
    "observer": {
        "ingress": {
            "interface": {
                "id": "11111111-1111-4111-8111-000000000010"
            }
        },
        "name": "SENSOR-0",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "192.0.2.100",
            "203.0.113.254"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.",
        "id": "51186749-7415-46be-90e5-000000000080",
        "name": "Network Service Discovery - UDP Scan Port",
        "uuid": "51186749-7415-46be-90e5-000000000080",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000003"
        },
        "assets": {
            "category": [
                "IT",
                "IT"
            ],
            "description": [
                "pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64"
            ],
            "entity": [
                "router",
                "router"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000012",
                "11111111-1111-4111-8111-000000000014"
            ],
            "localisation": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ],
            "name": [
                "fw01.example.com",
                "gw01.example.com"
            ],
            "perdue_level": [
                "2",
                "3"
            ],
            "purdue_level": [
                2,
                3
            ],
            "system": [
                "Windows"
            ]
        },
        "capture_zone": {
            "id": "11111111-1111-4111-8111-000000000018"
        },
        "catch_area": {
            "name": "11111111-1111-4111-8111-000000000018"
        },
        "module": "Detection Engine",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000002"
        },
        "sniffer": {
            "name": "11111111-1111-4111-8111-000000000010"
        }
    },
    "source": {
        "address": "203.0.113.254",
        "ip": "203.0.113.254",
        "mac": "02:00:00:00:00:04",
        "port": 53
    }
}

{
    "message": "{\"device\": [], \"event\": {\"code\": [], \"severity\": 1, \"outcome\": \"unknown\", \"created\": \"2025-03-12T08:51:28.586238Z\", \"category\": [\"info\"], \"ingested\": \"2025-03-12T08:51:28.586238Z\", \"kind\": \"alert\", \"type\": [\"info\"]}, \"forwarders\": [\"fw_sekoiaIO\"], \"destination\": {\"vendor\": \"Fortinet, Inc.\", \"port\": 58629, \"ip\": \"192.0.2.100\", \"mac\": \"02:00:00:00:00:05\"}, \"skt\": {\"module\": \"Other\", \"sniffer\": \"11111111-1111-4111-8111-000000000010\", \"assets\": [{\"first_seen\": \"2025-03-05T12:37:56.174487Z\", \"last_seen\": \"2025-03-12T08:50:59.469469Z\", \"name\": \"fw01.example.com\", \"category\": \"IT\", \"hardware_vendor\": \"LANNER ELECTRONICS, INC.\", \"level\": 0, \"primary_ip\": \"11111111-1111-4111-8111-000000000011\", \"id\": \"11111111-1111-4111-8111-000000000014\", \"entity\": \"router\", \"description\": \"pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64\", \"localisation\": \"lab-192-0-2-101-ge-1-26.example.org\"}, {\"system\": \"Windows\", \"first_seen\": \"2025-03-05T12:37:56.077529Z\", \"last_seen\": \"2025-03-12T08:51:00.348Z\", \"name\": \"gw01.example.com\", \"category\": \"IT\", \"hardware_vendor\": \"VMware, Inc.\", \"level\": 3, \"primary_ip\": \"11111111-1111-4111-8111-000000000004\", \"id\": \"11111111-1111-4111-8111-000000000012\", \"entity\": \"router\", \"localisation\": \"lab-192-0-2-121-1-2-1.example.org\"}], \"capture_zone\": \"11111111-1111-4111-8111-000000000018\", \"session\": \"00000000000000000000000000000002\", \"alert_id\": \"11111111-1111-4111-8111-000000000003\", \"sensor\": \"SENSOR-0\"}, \"@timestamp\": \"2025-03-12T08:51:28.586238Z\", \"network\": {\"transport\": \"UDP\", \"protocol\": \"dns\"}, \"@version\": \"1\", \"source\": {\"vendor\": \"LANNER ELECTRONICS, INC.\", \"port\": 53, \"ip\": \"203.0.113.254\", \"mac\": \"02:00:00:00:00:04\"}, \"observer\": {\"name\": \"citadelle-01\", \"vendor\": \"Seckiot\", \"product\": \"Seckiot Citadelle\", \"_type\": \"NIDS\", \"version\": \"\"}, \"rule\": {\"description\": \"Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.\", \"uuid\": \"51186749-7415-46be-90e5-000000000080\", \"name\": \"Network Service Discovery - UDP Scan Port\", \"version\": \"1\", \"author\": \"Seckiot\"}}",
    "event": {
        "ingested": "2025-03-12T08:51:28.586238Z",
        "kind": "alert",
        "provider": "Other",
        "severity": 1,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T08:51:28.586238Z",
    "destination": {
        "address": "192.0.2.100",
        "ip": "192.0.2.100",
        "mac": "02:00:00:00:00:05",
        "port": 58629
    },
    "device": {
        "manufacturer": [
            "LANNER ELECTRONICS, INC.",
            "VMware, Inc."
        ]
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000012",
            "11111111-1111-4111-8111-000000000014"
        ],
        "name": [
            "fw01.example.com",
            "gw01.example.com"
        ],
        "os": {
            "name": [
                "Windows"
            ]
        },
        "type": [
            "router",
            "router"
        ]
    },
    "network": {
        "protocol": "dns",
        "transport": "udp"
    },
    "observer": {
        "ingress": {
            "interface": {
                "id": "11111111-1111-4111-8111-000000000010"
            }
        },
        "name": "citadelle-01",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "192.0.2.100",
            "203.0.113.254"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.",
        "id": "51186749-7415-46be-90e5-000000000080",
        "name": "Network Service Discovery - UDP Scan Port",
        "uuid": "51186749-7415-46be-90e5-000000000080",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000003"
        },
        "assets": {
            "category": [
                "IT",
                "IT"
            ],
            "description": [
                "pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64"
            ],
            "entity": [
                "router",
                "router"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000012",
                "11111111-1111-4111-8111-000000000014"
            ],
            "localisation": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ],
            "name": [
                "fw01.example.com",
                "gw01.example.com"
            ],
            "perdue_level": [
                "0",
                "3"
            ],
            "purdue_level": [
                0,
                3
            ],
            "system": [
                "Windows"
            ]
        },
        "capture_zone": {
            "id": "11111111-1111-4111-8111-000000000018"
        },
        "catch_area": {
            "name": "11111111-1111-4111-8111-000000000018"
        },
        "module": "Other",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000002"
        },
        "sniffer": {
            "name": "11111111-1111-4111-8111-000000000010"
        }
    },
    "source": {
        "address": "203.0.113.254",
        "ip": "203.0.113.254",
        "mac": "02:00:00:00:00:04",
        "port": 53
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":1,\"outcome\":\"unknown\",\"created\":\"2025-03-12T08:51:28.586238Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T08:51:28.586238Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"destination\":{\"vendor\":\"Fortinet, Inc.\",\"port\":58629,\"ip\":\"192.0.2.100\",\"mac\":\"02:00:00:00:00:05\"},\"skt\":{\"module\":\"Detection Engine\",\"sniffer\":\"11111111-1111-4111-8111-000000000010\",\"assets\":[{\"first_seen\":\"2025-03-05T12:37:56.174487Z\",\"last_seen\":\"2025-03-12T08:50:59.469469Z\",\"name\":\"fw01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"LANNER ELECTRONICS, INC.\",\"level\":3,\"primary_ip\":\"11111111-1111-4111-8111-000000000011\",\"id\":\"11111111-1111-4111-8111-000000000014\",\"entity\":\"router\",\"description\":\"pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64\",\"localisation\":\"lab-192-0-2-101-ge-1-26.example.org\"},{\"system\":\"Windows\",\"first_seen\":\"2025-03-05T12:37:56.077529Z\",\"last_seen\":\"2025-03-12T08:51:00.348Z\",\"name\":\"gw01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"level\":3,\"primary_ip\":\"11111111-1111-4111-8111-000000000004\",\"id\":\"11111111-1111-4111-8111-000000000012\",\"entity\":\"router\",\"localisation\":\"lab-192-0-2-121-1-2-1.example.org\"}],\"capture_zone\":\"11111111-1111-4111-8111-000000000018\",\"session\":\"00000000000000000000000000000002\",\"alert_id\":\"11111111-1111-4111-8111-000000000003\",\"sensor\":\"SENSOR-0\"},\"@timestamp\":\"2025-03-12T08:51:28.586238Z\",\"network\":{\"transport\":\"UDP\",\"protocol\":\"dns\"},\"@version\":\"1\",\"source\":{\"vendor\":\"LANNER ELECTRONICS, INC.\",\"port\":53,\"ip\":\"203.0.113.254\",\"mac\":\"02:00:00:00:00:04\"},\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"rule\":{\"description\":\"Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.\",\"uuid\":\"51186749-7415-46be-90e5-000000000080\",\"name\":\"Network Service Discovery - UDP Scan Port\",\"version\":\"1\",\"author\":\"Seckiot\"}}\n",
    "event": {
        "category": [
            "intrusion_detection"
        ],
        "ingested": "2025-03-12T08:51:28.586238Z",
        "kind": "alert",
        "provider": "Detection Engine",
        "severity": 1,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T08:51:28.586238Z",
    "destination": {
        "address": "192.0.2.100",
        "ip": "192.0.2.100",
        "mac": "02:00:00:00:00:05",
        "port": 58629
    },
    "device": {
        "manufacturer": [
            "LANNER ELECTRONICS, INC.",
            "VMware, Inc."
        ]
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000012",
            "11111111-1111-4111-8111-000000000014"
        ],
        "name": [
            "fw01.example.com",
            "gw01.example.com"
        ],
        "os": {
            "name": [
                "Windows"
            ]
        },
        "type": [
            "router",
            "router"
        ]
    },
    "network": {
        "protocol": "dns",
        "transport": "udp"
    },
    "observer": {
        "ingress": {
            "interface": {
                "id": "11111111-1111-4111-8111-000000000010"
            }
        },
        "name": "SENSOR-0",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "192.0.2.100",
            "203.0.113.254"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.",
        "id": "51186749-7415-46be-90e5-000000000080",
        "name": "Network Service Discovery - UDP Scan Port",
        "uuid": "51186749-7415-46be-90e5-000000000080",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000003"
        },
        "assets": {
            "category": [
                "IT",
                "IT"
            ],
            "description": [
                "pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64"
            ],
            "entity": [
                "router",
                "router"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000012",
                "11111111-1111-4111-8111-000000000014"
            ],
            "localisation": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ],
            "name": [
                "fw01.example.com",
                "gw01.example.com"
            ],
            "perdue_level": [
                "3",
                "3"
            ],
            "purdue_level": [
                3,
                3
            ],
            "system": [
                "Windows"
            ]
        },
        "capture_zone": {
            "id": "11111111-1111-4111-8111-000000000018"
        },
        "catch_area": {
            "name": "11111111-1111-4111-8111-000000000018"
        },
        "module": "Detection Engine",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000002"
        },
        "sniffer": {
            "name": "11111111-1111-4111-8111-000000000010"
        }
    },
    "source": {
        "address": "203.0.113.254",
        "ip": "203.0.113.254",
        "mac": "02:00:00:00:00:04",
        "port": 53
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":1,\"outcome\":\"unknown\",\"created\":\"2025-03-12T07:31:28.525356Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T07:31:28.525356Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"destination\":{\"vendor\":\"VMware, Inc.\",\"port\":4739,\"ip\":\"198.51.100.1\",\"mac\":\"02:00:00:00:00:02\"},\"skt\":{\"module\":\"Detection Engine\",\"sniffer\":\"11111111-1111-4111-8111-000000000010\",\"assets\":[{\"system\":\"Windows\",\"first_seen\":\"2025-03-05T12:37:56.077529Z\",\"last_seen\":\"2025-03-12T07:31:12.375646Z\",\"name\":\"gw01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"level\":3,\"primary_ip\":\"11111111-1111-4111-8111-000000000004\",\"id\":\"11111111-1111-4111-8111-000000000012\",\"entity\":\"router\",\"localisation\":\"lab-192-0-2-121-1-2-1.example.org\"},{\"first_seen\":\"2025-03-06T13:57:58.838858Z\",\"last_seen\":\"2025-03-12T07:30:53.844522Z\",\"name\":\"fw02.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"Fortinet, Inc.\",\"level\":3,\"primary_ip\":\"11111111-1111-4111-8111-000000000020\",\"id\":\"11111111-1111-4111-8111-000000000001\",\"entity\":\"router\",\"description\":\"Firewall Site 2\",\"localisation\":\"lab-192-0-2-101-ge-1-26.example.org\"},{\"system\":\"Windows Server 2019 Standard\",\"first_seen\":\"2025-03-05T12:37:53.554365Z\",\"last_seen\":\"2025-03-12T07:31:11.928426Z\",\"name\":\"srv02.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"modele\":\"VMware7,1\",\"level\":3,\"version\":\"17763.4737\",\"primary_ip\":\"11111111-1111-4111-8111-000000000006\",\"id\":\"11111111-1111-4111-8111-000000000019\",\"entity\":\"virtual-server\",\"description\":\"\",\"localisation\":\"lab-192-0-2-121-1-2-1.example.org\"},{\"system\":\"Windows 2016+ Server\",\"first_seen\":\"2025-03-06T13:57:57.628789Z\",\"last_seen\":\"2025-03-12T07:31:21.084186Z\",\"name\":\"srv01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"level\":3,\"version\":\"10.0.10011.16384\",\"primary_ip\":\"11111111-1111-4111-8111-000000000008\",\"id\":\"11111111-1111-4111-8111-000000000005\",\"entity\":\"virtual-server\",\"description\":\"\",\"localisation\":\"lab-192-0-2-121-1-2-1.example.org\"},{\"system\":\"Windows Server 2019 Standard\",\"first_seen\":\"2025-03-06T13:49:56.593575Z\",\"last_seen\":\"2025-03-12T07:31:12.347024Z\",\"name\":\"dc01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"modele\":\"VMware7,1\",\"level\":3,\"version\":\"17763.379\",\"primary_ip\":\"11111111-1111-4111-8111-000000000013\",\"id\":\"11111111-1111-4111-8111-000000000002\",\"entity\":\"domain-controller\",\"description\":\"DC 1\",\"localisation\":\"lab-192-0-2-111-gi0-1.example.org\"}],\"capture_zone\":\"11111111-1111-4111-8111-000000000018\",\"session\":\"00000000000000000000000000000003\",\"alert_id\":\"11111111-1111-4111-8111-000000000015\",\"sensor\":\"SENSOR-0\"},\"@timestamp\":\"2025-03-12T07:31:28.525356Z\",\"network\":{\"transport\":\"UDP\",\"protocol\":\"iana_ipfix\"},\"@version\":\"1\",\"source\":{\"vendor\":\"VMware, Inc.\",\"port\":8346,\"ip\":\"198.51.100.254\",\"mac\":\"02:00:00:00:00:01\"},\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"rule\":{\"description\":\"A UDP flood Denial of Service attack involves sending a large number of UDP packets to random ports on a target. This overloads the target's network and resources, leading to performance degradation or unavailability of the service to legitimate users.\",\"uuid\":\"51186749-7415-46be-90e5-000000000087\",\"name\":\"Denial Of Service - UDP Flood\",\"version\":\"1\",\"author\":\"Seckiot\"}}\n",
    "event": {
        "category": [
            "intrusion_detection"
        ],
        "ingested": "2025-03-12T07:31:28.525356Z",
        "kind": "alert",
        "provider": "Detection Engine",
        "severity": 1,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T07:31:28.525356Z",
    "destination": {
        "address": "198.51.100.1",
        "ip": "198.51.100.1",
        "mac": "02:00:00:00:00:02",
        "port": 4739
    },
    "device": {
        "manufacturer": [
            "Fortinet, Inc.",
            "VMware, Inc.",
            "VMware, Inc.",
            "VMware, Inc.",
            "VMware, Inc."
        ],
        "model": {
            "identifier": [
                "VMware7,1",
                "VMware7,1"
            ]
        }
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-111-gi0-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000001",
            "11111111-1111-4111-8111-000000000002",
            "11111111-1111-4111-8111-000000000005",
            "11111111-1111-4111-8111-000000000012",
            "11111111-1111-4111-8111-000000000019"
        ],
        "name": [
            "dc01.example.com",
            "fw02.example.com",
            "gw01.example.com",
            "srv01.example.com",
            "srv02.example.com"
        ],
        "os": {
            "name": [
                "Windows",
                "Windows 2016+ Server",
                "Windows Server 2019 Standard",
                "Windows Server 2019 Standard"
            ],
            "version": [
                "10.0.10011.16384",
                "17763.379",
                "17763.4737"
            ]
        },
        "type": [
            "domain-controller",
            "router",
            "router",
            "virtual-server",
            "virtual-server"
        ]
    },
    "network": {
        "protocol": "iana_ipfix",
        "transport": "udp"
    },
    "observer": {
        "ingress": {
            "interface": {
                "id": "11111111-1111-4111-8111-000000000010"
            }
        },
        "name": "SENSOR-0",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "198.51.100.1",
            "198.51.100.254"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "A UDP flood Denial of Service attack involves sending a large number of UDP packets to random ports on a target. This overloads the target's network and resources, leading to performance degradation or unavailability of the service to legitimate users.",
        "id": "51186749-7415-46be-90e5-000000000087",
        "name": "Denial Of Service - UDP Flood",
        "uuid": "51186749-7415-46be-90e5-000000000087",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000015"
        },
        "assets": {
            "category": [
                "IT",
                "IT",
                "IT",
                "IT",
                "IT"
            ],
            "description": [
                "DC 1",
                "Firewall Site 2"
            ],
            "entity": [
                "domain-controller",
                "router",
                "router",
                "virtual-server",
                "virtual-server"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000001",
                "11111111-1111-4111-8111-000000000002",
                "11111111-1111-4111-8111-000000000005",
                "11111111-1111-4111-8111-000000000012",
                "11111111-1111-4111-8111-000000000019"
            ],
            "localisation": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-111-gi0-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ],
            "name": [
                "dc01.example.com",
                "fw02.example.com",
                "gw01.example.com",
                "srv01.example.com",
                "srv02.example.com"
            ],
            "perdue_level": [
                "3",
                "3",
                "3",
                "3",
                "3"
            ],
            "purdue_level": [
                3,
                3,
                3,
                3,
                3
            ],
            "system": [
                "Windows",
                "Windows 2016+ Server",
                "Windows Server 2019 Standard",
                "Windows Server 2019 Standard"
            ],
            "version": [
                "10.0.10011.16384",
                "17763.379",
                "17763.4737"
            ]
        },
        "capture_zone": {
            "id": "11111111-1111-4111-8111-000000000018"
        },
        "catch_area": {
            "name": "11111111-1111-4111-8111-000000000018"
        },
        "module": "Detection Engine",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000003"
        },
        "sniffer": {
            "name": "11111111-1111-4111-8111-000000000010"
        }
    },
    "source": {
        "address": "198.51.100.254",
        "ip": "198.51.100.254",
        "mac": "02:00:00:00:00:01",
        "port": 8346
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":7,\"outcome\":\"unknown\",\"created\":\"2025-03-12T13:34:04.407568Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T13:34:04.407568Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"skt\":{\"module\":\"Cartography\",\"sniffer\":\"\",\"assets\":[{\"name\":\"device01.example.com\",\"first_seen\":\"2025-03-12T13:33:48Z\",\"last_seen\":\"2025-03-12T13:34:04.348385Z\",\"id\":\"11111111-1111-4111-8111-000000000024\"}],\"capture_zone\":\"\",\"alert_id\":\"11111111-1111-4111-8111-000000000016\",\"sensor\":\"\"},\"@timestamp\":\"2025-03-12T13:34:04.407568Z\",\"rule\":{\"description\":\"Asset `203.0.113.11` created\",\"uuid\":\"00000000-0000-0000-0000-000000000001\",\"name\":\"Unknown Device in the Network\",\"version\":\"1\",\"author\":\"Seckiot\"},\"@version\":\"1\"}\n",
    "event": {
        "category": [
            "host"
        ],
        "ingested": "2025-03-12T13:34:04.407568Z",
        "kind": "alert",
        "provider": "Cartography",
        "severity": 7,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T13:34:04.407568Z",
    "host": {
        "id": [
            "11111111-1111-4111-8111-000000000024"
        ],
        "name": [
            "device01.example.com"
        ]
    },
    "observer": {
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "rule": {
        "author": "Seckiot",
        "description": "Asset `203.0.113.11` created",
        "id": "00000000-0000-0000-0000-000000000001",
        "name": "Unknown Device in the Network",
        "uuid": "00000000-0000-0000-0000-000000000001",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000016"
        },
        "assets": {
            "id": [
                "11111111-1111-4111-8111-000000000024"
            ],
            "name": [
                "device01.example.com"
            ]
        },
        "module": "Cartography"
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":1,\"outcome\":\"unknown\",\"created\":\"2025-03-12T09:29:10.485097Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T09:29:10.485097Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"destination\":{\"ip\":\"198.51.100.82\",\"port\":443},\"skt\":{\"module\":\"Cartography\",\"sniffer\":\"br0\",\"assets\":[{\"name\":\"device02.example.com\",\"first_seen\":\"2025-03-12T09:28:40Z\",\"last_seen\":\"2025-03-12T09:29:09.346448Z\",\"id\":\"11111111-1111-4111-8111-000000000022\"},{\"system\":\"Windows 2016+ Server\",\"first_seen\":\"2025-03-05T12:37:53.554365Z\",\"last_seen\":\"2025-03-12T09:29:07.350067Z\",\"name\":\"wks01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"level\":3,\"version\":\"10.0.10011.16384\",\"primary_ip\":\"11111111-1111-4111-8111-000000000007\",\"id\":\"11111111-1111-4111-8111-000000000009\",\"entity\":\"virtual-server\",\"description\":\"\",\"localisation\":\"lab-192-0-2-111-gi0-1.example.org\"}],\"capture_zone\":\"default\",\"session\":\"00000000000000000000000000000001\",\"alert_id\":\"11111111-1111-4111-8111-000000000017\",\"sensor\":\"SENSOR-0\"},\"@timestamp\":\"2025-03-12T09:29:10.485097Z\",\"network\":{\"protocol\":\"TLS\"},\"@version\":\"1\",\"source\":{\"vendor\":\"VMware, Inc.\",\"port\":50335,\"ip\":\"192.0.2.50\",\"mac\":\"02:00:00:00:00:03\"},\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"rule\":{\"description\":\"New link detected between WKS01 and 198.51.100.82\",\"uuid\":\"00000000-0000-0000-0000-000000000012\",\"name\":\"New Link Between Two Assets\",\"version\":\"1\",\"author\":\"Seckiot\"}}\n",
    "event": {
        "category": [
            "network"
        ],
        "ingested": "2025-03-12T09:29:10.485097Z",
        "kind": "alert",
        "provider": "Cartography",
        "severity": 1,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T09:29:10.485097Z",
    "destination": {
        "address": "198.51.100.82",
        "ip": "198.51.100.82",
        "port": 443
    },
    "device": {
        "manufacturer": [
            "VMware, Inc."
        ]
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-111-gi0-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000009",
            "11111111-1111-4111-8111-000000000022"
        ],
        "name": [
            "device02.example.com",
            "wks01.example.com"
        ],
        "os": {
            "name": [
                "Windows 2016+ Server"
            ],
            "version": [
                "10.0.10011.16384"
            ]
        },
        "type": [
            "virtual-server"
        ]
    },
    "network": {
        "protocol": "tls"
    },
    "observer": {
        "ingress": {
            "interface": {
                "name": "br0"
            },
            "zone": "default"
        },
        "name": "SENSOR-0",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "192.0.2.50",
            "198.51.100.82"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "New link detected between WKS01 and 198.51.100.82",
        "id": "00000000-0000-0000-0000-000000000012",
        "name": "New Link Between Two Assets",
        "uuid": "00000000-0000-0000-0000-000000000012",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000017"
        },
        "assets": {
            "category": [
                "IT"
            ],
            "entity": [
                "virtual-server"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000009",
                "11111111-1111-4111-8111-000000000022"
            ],
            "localisation": [
                "lab-192-0-2-111-gi0-1.example.org"
            ],
            "name": [
                "device02.example.com",
                "wks01.example.com"
            ],
            "perdue_level": [
                "3"
            ],
            "purdue_level": [
                3
            ],
            "system": [
                "Windows 2016+ Server"
            ],
            "version": [
                "10.0.10011.16384"
            ]
        },
        "catch_area": {
            "name": "default"
        },
        "module": "Cartography",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000001"
        },
        "sniffer": {
            "name": "br0"
        }
    },
    "source": {
        "address": "192.0.2.50",
        "ip": "192.0.2.50",
        "mac": "02:00:00:00:00:03",
        "port": 50335
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":7,\"outcome\":\"unknown\",\"created\":\"2025-03-12T13:34:06.487415Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T13:34:06.487415Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"destination\":{\"ip\":\"203.0.113.11\",\"port\":443},\"skt\":{\"module\":\"Cartography\",\"sniffer\":\"br0\",\"assets\":[{\"name\":\"device01.example.com\",\"first_seen\":\"2025-03-12T13:33:48Z\",\"last_seen\":\"2025-03-12T13:34:04.348385Z\",\"id\":\"11111111-1111-4111-8111-000000000024\"}],\"capture_zone\":\"default\",\"session\":\"00000000000000000000000000000004\",\"alert_id\":\"11111111-1111-4111-8111-000000000023\",\"sensor\":\"SENSOR-0\"},\"@timestamp\":\"2025-03-12T13:34:06.487415Z\",\"network\":{\"protocol\":\"TLS\"},\"@version\":\"1\",\"source\":{\"vendor\":\"VMware, Inc.\",\"port\":50569,\"ip\":\"203.0.113.1\",\"mac\":\"02:00:00:00:00:01\"},\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"rule\":{\"description\":\"New server port 203.0.113.11:443 (default) detected on 203.0.113.11\",\"uuid\":\"00000000-0000-0000-0000-000000000002\",\"name\":\"New Open Server Port\",\"version\":\"1\",\"author\":\"Seckiot\"}}\n",
    "event": {
        "category": [
            "network"
        ],
        "ingested": "2025-03-12T13:34:06.487415Z",
        "kind": "alert",
        "provider": "Cartography",
        "severity": 7,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T13:34:06.487415Z",
    "destination": {
        "address": "203.0.113.11",
        "ip": "203.0.113.11",
        "port": 443
    },
    "host": {
        "id": [
            "11111111-1111-4111-8111-000000000024"
        ],
        "name": [
            "device01.example.com"
        ]
    },
    "network": {
        "protocol": "tls"
    },
    "observer": {
        "ingress": {
            "interface": {
                "name": "br0"
            },
            "zone": "default"
        },
        "name": "SENSOR-0",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "203.0.113.1",
            "203.0.113.11"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "New server port 203.0.113.11:443 (default) detected on 203.0.113.11",
        "id": "00000000-0000-0000-0000-000000000002",
        "name": "New Open Server Port",
        "uuid": "00000000-0000-0000-0000-000000000002",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000023"
        },
        "assets": {
            "id": [
                "11111111-1111-4111-8111-000000000024"
            ],
            "name": [
                "device01.example.com"
            ]
        },
        "catch_area": {
            "name": "default"
        },
        "module": "Cartography",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000004"
        },
        "sniffer": {
            "name": "br0"
        }
    },
    "source": {
        "address": "203.0.113.1",
        "ip": "203.0.113.1",
        "mac": "02:00:00:00:00:01",
        "port": 50569
    }
}

{
    "message": "{\"device\": [], \"event\": {\"code\": [], \"severity\": 7, \"outcome\": \"unknown\", \"created\": \"2025-03-12T13:34:04.407568Z\", \"category\": [\"info\"], \"ingested\": \"2025-03-12T13:34:04.407568Z\", \"kind\": \"alert\", \"type\": [\"info\"]}, \"forwarders\": [\"fw_sekoiaIO\"], \"observer\": {\"name\": \"\", \"vendor\": \"Seckiot\", \"product\": \"Seckiot Citadelle\", \"_type\": \"NIDS\", \"version\": \"\"}, \"skt\": {\"module\": \"Cartography\", \"sniffer\": \"\", \"assets\": [], \"capture_zone\": \"\", \"alert_id\": \"11111111-1111-4111-8111-000000000016\", \"sensor\": \"\"}, \"@timestamp\": \"2025-03-12T13:34:04.407568Z\", \"rule\": {\"description\": \"Asset `203.0.113.11` created\", \"uuid\": \"00000000-0000-0000-0000-000000000001\", \"name\": \"Unknown Device in the Network\", \"version\": \"1\", \"author\": \"Seckiot\"}, \"@version\": \"1\"}",
    "event": {
        "category": [
            "host"
        ],
        "ingested": "2025-03-12T13:34:04.407568Z",
        "kind": "alert",
        "provider": "Cartography",
        "severity": 7,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T13:34:04.407568Z",
    "observer": {
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "rule": {
        "author": "Seckiot",
        "description": "Asset `203.0.113.11` created",
        "id": "00000000-0000-0000-0000-000000000001",
        "name": "Unknown Device in the Network",
        "uuid": "00000000-0000-0000-0000-000000000001",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000016"
        },
        "module": "Cartography"
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":7,\"outcome\":\"unknown\",\"created\":\"2025-03-06T14:05:57.457022Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-06T14:05:57.457022Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"skt\":{\"module\":\"CVE\",\"sniffer\":\"\",\"assets\":[{\"system\":\"Windows Server 2019 Standard\",\"first_seen\":\"2025-03-06T13:49:56.593575Z\",\"last_seen\":\"2025-03-06T14:05:55.420426Z\",\"name\":\"dc01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"modele\":\"VMware7,1\",\"level\":3,\"version\":\"17763.379\",\"primary_ip\":\"11111111-1111-4111-8111-000000000013\",\"id\":\"11111111-1111-4111-8111-000000000002\",\"entity\":\"domain-controller\",\"description\":\"DC 1\",\"localisation\":\"lab-192-0-2-111-gi0-1.example.org\"}],\"capture_zone\":\"\",\"alert_id\":\"11111111-1111-4111-8111-000000000021\",\"sensor\":\"\"},\"vulnerability\":{\"severity\":\"medium\",\"scanner\":{\"vendor\":\"Seckiot\"},\"reference\":\"http://example.org/exploits/26528/,http://example.org/exploits/26528/\",\"enumeration\":\"CVE\",\"id\":\"CVE-2013-1414\",\"description\":\"New vulnerability CVE-2013-1414 detected on DC01\",\"score\":{\"base\":\"5.1\",\"version\":\"3.1\"},\"category\":null,\"classification\":\"CVSS\"},\"@timestamp\":\"2025-03-06T14:05:57.457022Z\",\"rule\":{\"description\":\"New vulnerability CVE-2013-1414 detected on DC01\",\"uuid\":\"00000000-0000-0000-0000-000000000003\",\"name\":\"Nouvelle Vuln\u00e9rabilit\u00e9 D\u00e9couverte\",\"version\":\"1\",\"author\":\"seckiot\"},\"@version\":\"1\"}\n",
    "event": {
        "category": [
            "vulnerability"
        ],
        "ingested": "2025-03-06T14:05:57.457022Z",
        "kind": "alert",
        "provider": "CVE",
        "severity": 7,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-06T14:05:57.457022Z",
    "device": {
        "manufacturer": [
            "VMware, Inc."
        ],
        "model": {
            "identifier": [
                "VMware7,1"
            ]
        }
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-111-gi0-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000002"
        ],
        "name": [
            "dc01.example.com"
        ],
        "os": {
            "name": [
                "Windows Server 2019 Standard"
            ],
            "version": [
                "17763.379"
            ]
        },
        "type": [
            "domain-controller"
        ]
    },
    "observer": {
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "rule": {
        "author": "seckiot",
        "description": "New vulnerability CVE-2013-1414 detected on DC01",
        "id": "00000000-0000-0000-0000-000000000003",
        "name": "Nouvelle Vuln\u00e9rabilit\u00e9 D\u00e9couverte",
        "uuid": "00000000-0000-0000-0000-000000000003",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000021"
        },
        "assets": {
            "category": [
                "IT"
            ],
            "description": [
                "DC 1"
            ],
            "entity": [
                "domain-controller"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000002"
            ],
            "localisation": [
                "lab-192-0-2-111-gi0-1.example.org"
            ],
            "name": [
                "dc01.example.com"
            ],
            "perdue_level": [
                "3"
            ],
            "purdue_level": [
                3
            ],
            "system": [
                "Windows Server 2019 Standard"
            ],
            "version": [
                "17763.379"
            ]
        },
        "module": "CVE"
    },
    "vulnerability": {
        "classification": "CVSS",
        "description": "New vulnerability CVE-2013-1414 detected on DC01",
        "enumeration": "CVE",
        "id": "CVE-2013-1414",
        "reference": "http://example.org/exploits/26528/,http://example.org/exploits/26528/",
        "scanner": {
            "vendor": "Seckiot"
        },
        "score": {
            "base": 5.1,
            "version": "3.1"
        },
        "severity": "medium"
    }
}

Extracted Fields

The following table lists the fields that are extracted, normalized under the ECS format, analyzed and indexed by the parser. It should be noted that infered fields are not listed.

Name	Type	Description
@timestamp	date	Date/time when the event originated.
destination.ip	ip	IP address of the destination.
destination.mac	keyword	MAC address of the destination.
destination.port	long	Port of the destination.
event.ingested	date	Timestamp when an event arrived in the central data store.
event.kind	keyword	The kind of the event. The highest categorization field in the hierarchy.
event.outcome	keyword	The outcome of the event. The lowest level categorization field in the hierarchy.
event.provider	keyword	Source of the event.
event.severity	long	Numeric severity of the event.
event.type	keyword	Event type. The third categorization field in the hierarchy.
host.geo.name	keyword	User-defined description of a location.
host.id	keyword	Unique host id.
host.name	keyword	Name of the host.
host.os.name	keyword	Operating system name, without the version.
host.os.version	keyword	Operating system version as a raw string.
host.type	keyword	Type of host.
network.protocol	keyword	Application protocol name.
network.transport	keyword	Protocol Name corresponding to the field iana_number.
observer.ingress.interface.id	keyword	Interface ID
observer.ingress.interface.name	keyword	Interface name
observer.ingress.zone	keyword	Observer ingress zone
observer.name	keyword	Custom name of the observer.
observer.product	keyword	The product name of the observer.
observer.type	keyword	The type of the observer the data is coming from.
observer.vendor	keyword	Vendor name of the observer.
observer.version	keyword	Observer version.
rule.author	keyword	Rule author
rule.description	keyword	Rule description
rule.id	keyword	Rule ID
rule.name	keyword	Rule name
rule.uuid	keyword	Rule UUID
rule.version	keyword	Rule version
seckiot.alert.id	keyword	Unique ID of the alert
seckiot.assets.category	keyword	Category of the assets involved in the alert (IT/OT/IOT)
seckiot.assets.description	keyword	Description of the assets involved in the alert
seckiot.assets.entity	text	(deprecated) use host.type - Entity of the assets involved in the alert
seckiot.assets.id	text	(deprecated) use host.id - Unique ID of the assets involved in the alert
seckiot.assets.localisation	text	(deprecated) use host.geo.name - Localisation of the assets involved in the alert
seckiot.assets.name	text	(deprecated) use host.name - Name of the assets involved in the alert
seckiot.assets.perdue_level	text	(deprecated) use seckiot.assets.purdue_level - Purdue level (0 to 6) of the assets involved in the alert
seckiot.assets.purdue_level	long	Purdue level (0 to 6) of the assets involved in the alert
seckiot.assets.system	text	(deprecated) use host.os.name - Operating system name of the assets involved in the alert
seckiot.assets.version	text	(deprecated) use host.os.version - Operating system version of the assets involved in the alert
seckiot.capture_zone.id	keyword	Identifier (UUID) of the capture zone where the traffic was observed
seckiot.catch_area.name	text	(deprecated) use observer.ingress.zone or seckiot.capture_zone.id - Name or UUID of the capture zone where the traffic was observed
seckiot.module	text	(deprecated) use event.provider - Seckiot module that raised the alert
seckiot.sensor.name	text	(deprecated) use observer.name - Name of the sensor that captured the traffic
seckiot.session.id	keyword	Identifier of the network session that triggered the alert
seckiot.sniffer.name	text	(deprecated) use observer.ingress.interface.name or observer.ingress.interface.id - Name or UUID of the sniffer that captured the traffic
source.ip	ip	IP address of the source.
source.mac	keyword	MAC address of the source.
source.port	long	Port of the source.
vulnerability.category	keyword	Category of a vulnerability.
vulnerability.classification	keyword	Classification of the vulnerability.
vulnerability.description	keyword	Description of the vulnerability.
vulnerability.enumeration	keyword	Identifier of the vulnerability.
vulnerability.id	keyword	ID of the vulnerability.
vulnerability.reference	keyword	Reference of the vulnerability.
vulnerability.report_id	keyword	Scan identification number.
vulnerability.scanner.vendor	keyword	Name of the scanner vendor.
vulnerability.score.base	float	Vulnerability Base score.
vulnerability.score.environmental	float	Vulnerability Environmental score.
vulnerability.score.temporal	float	Vulnerability Temporal score.
vulnerability.score.version	keyword	CVSS version.
vulnerability.severity	keyword	Severity of the vulnerability.

For more information on the Intake Format, please find the code of the Parser, Smart Descriptions, and Supported Events here.

Detection section

The following section provides information for those who wish to learn more about the detection capabilities enabled by collecting this intake. It includes details about the built-in rule catalog, event categories, and ECS fields extracted from raw events. This is essential for users aiming to create custom detection rules, perform hunting activities, or pivot in the events page.

Related Built-in Rules

The following Sekoia.io built-in rules match the intake Seckiot Citadelle. This documentation is updated automatically and is based solely on the fields used by the intake which are checked against our rules. This means that some rules will be listed but might not be relevant with the intake.

SEKOIA.IO x Seckiot Citadelle on ATT&CK Navigator

Cryptomining

Detection of domain names potentially related to cryptomining activities.

• Effort: master

Dynamic DNS Contacted

Detect communication with dynamic dns domain. This kind of domain is often used by attackers. This rule can trigger false positive in non-controlled environment because dynamic dns is not always malicious.

• Effort: master

Exfiltration Domain

Detects traffic toward a domain flagged as a possible exfiltration vector.

• Effort: master

Remote Access Tool Domain

Detects traffic toward a domain flagged as a Remote Administration Tool (RAT).

• Effort: master

Remote Monitoring and Management Software - AnyDesk

Detect artifacts related to the installation or execution of the Remote Monitoring and Management tool AnyDesk.

• Effort: master

SEKOIA.IO Intelligence Feed

Detect threats based on indicators of compromise (IOCs) collected by SEKOIA's Threat and Detection Research team.

• Effort: elementary

Sekoia.io EICAR Detection

Detects observables in Sekoia.io CTI tagged as EICAR, which are fake samples meant to test detection.

• Effort: master

TOR Usage

Detects TOR usage, based on the IP address and the destination port (filtered on NTP). TOR is short for The Onion Router, and it gets its name from how it works. TOR intercepts the network traffic from one or more apps on user’s computer, usually the user web browser, and shuffles it through a number of randomly-chosen computers before passing it on to its destination. This disguises user location, and makes it harder for servers to pick him/her out on repeat visits, or to tie together separate visits to different sites, this making tracking and surveillance more difficult. Before a network packet starts its journey, user’s computer chooses a random list of relays and repeatedly encrypts the data in multiple layers, like an onion. Each relay knows only enough to strip off the outermost layer of encryption, before passing what’s left on to the next relay in the list.

• Effort: master

TOR Usage Generic Rule

Detects TOR usage globally, whether the IP is a destination or source. TOR is short for The Onion Router, and it gets its name from how it works. TOR intercepts the network traffic from one or more apps on user’s computer, usually the user web browser, and shuffles it through a number of randomly-chosen computers before passing it on to its destination. This disguises user location, and makes it harder for servers to pick him/her out on repeat visits, or to tie together separate visits to different sites, this making tracking and surveillance more difficult. Before a network packet starts its journey, user’s computer chooses a random list of relays and repeatedly encrypts the data in multiple layers, like an onion. Each relay knows only enough to strip off the outermost layer of encryption, before passing what’s left on to the next relay in the list.

• Effort: master

Event Categories

The following table lists the data source offered by this integration.

Data Source	Description
Network intrusion detection system	Seckiot Citadelle identify suspicious behaviors by providing alerts logs
Network device logs	The logs provided by Seckiot Citadelle give a good overview of the network activity
Network protocol analysis	The logs offered by Seckiot Citadelle provide traffic analysis
Asset Management	Seckiot Citadelle identify all devices and provide a complete visibility

Transformed Events Samples after Ingestion

This section demonstrates how the raw logs will be transformed by our parsers. It shows the extracted fields that will be available for use in the built-in detection rules and hunting activities in the events page. Understanding these transformations is essential for analysts to create effective detection mechanisms with custom detection rules and to leverage the full potential of the collected data.

detection_purdue_level_string.jsondetection_purdue_level_zero.jsondetection_scan.jsondetection_udp_flood.jsonmaps_asset_create.jsonmaps_new_link.jsonmaps_new_server_port.jsonmaps_without_assets.jsonvulnerability.json

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":1,\"outcome\":\"unknown\",\"created\":\"2025-03-12T08:51:28.586238Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T08:51:28.586238Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"destination\":{\"vendor\":\"Fortinet, Inc.\",\"port\":58629,\"ip\":\"192.0.2.100\",\"mac\":\"02:00:00:00:00:05\"},\"skt\":{\"module\":\"Detection Engine\",\"sniffer\":\"11111111-1111-4111-8111-000000000010\",\"assets\":[{\"first_seen\":\"2025-03-05T12:37:56.174487Z\",\"last_seen\":\"2025-03-12T08:50:59.469469Z\",\"name\":\"fw01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"LANNER ELECTRONICS, INC.\",\"level\":\"2\",\"primary_ip\":\"11111111-1111-4111-8111-000000000011\",\"id\":\"11111111-1111-4111-8111-000000000014\",\"entity\":\"router\",\"description\":\"pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64\",\"localisation\":\"lab-192-0-2-101-ge-1-26.example.org\"},{\"system\":\"Windows\",\"first_seen\":\"2025-03-05T12:37:56.077529Z\",\"last_seen\":\"2025-03-12T08:51:00.348Z\",\"name\":\"gw01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"level\":3,\"primary_ip\":\"11111111-1111-4111-8111-000000000004\",\"id\":\"11111111-1111-4111-8111-000000000012\",\"entity\":\"router\",\"localisation\":\"lab-192-0-2-121-1-2-1.example.org\"}],\"capture_zone\":\"11111111-1111-4111-8111-000000000018\",\"session\":\"00000000000000000000000000000002\",\"alert_id\":\"11111111-1111-4111-8111-000000000003\",\"sensor\":\"SENSOR-0\"},\"@timestamp\":\"2025-03-12T08:51:28.586238Z\",\"network\":{\"transport\":\"UDP\",\"protocol\":\"dns\"},\"@version\":\"1\",\"source\":{\"vendor\":\"LANNER ELECTRONICS, INC.\",\"port\":53,\"ip\":\"203.0.113.254\",\"mac\":\"02:00:00:00:00:04\"},\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"rule\":{\"description\":\"Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.\",\"uuid\":\"51186749-7415-46be-90e5-000000000080\",\"name\":\"Network Service Discovery - UDP Scan Port\",\"version\":\"1\",\"author\":\"Seckiot\"}}\n",
    "event": {
        "category": [
            "intrusion_detection"
        ],
        "ingested": "2025-03-12T08:51:28.586238Z",
        "kind": "alert",
        "provider": "Detection Engine",
        "severity": 1,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T08:51:28.586238Z",
    "destination": {
        "address": "192.0.2.100",
        "ip": "192.0.2.100",
        "mac": "02:00:00:00:00:05",
        "port": 58629
    },
    "device": {
        "manufacturer": [
            "LANNER ELECTRONICS, INC.",
            "VMware, Inc."
        ]
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000012",
            "11111111-1111-4111-8111-000000000014"
        ],
        "name": [
            "fw01.example.com",
            "gw01.example.com"
        ],
        "os": {
            "name": [
                "Windows"
            ]
        },
        "type": [
            "router",
            "router"
        ]
    },
    "network": {
        "protocol": "dns",
        "transport": "udp"
    },
    "observer": {
        "ingress": {
            "interface": {
                "id": "11111111-1111-4111-8111-000000000010"
            }
        },
        "name": "SENSOR-0",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "192.0.2.100",
            "203.0.113.254"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.",
        "id": "51186749-7415-46be-90e5-000000000080",
        "name": "Network Service Discovery - UDP Scan Port",
        "uuid": "51186749-7415-46be-90e5-000000000080",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000003"
        },
        "assets": {
            "category": [
                "IT",
                "IT"
            ],
            "description": [
                "pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64"
            ],
            "entity": [
                "router",
                "router"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000012",
                "11111111-1111-4111-8111-000000000014"
            ],
            "localisation": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ],
            "name": [
                "fw01.example.com",
                "gw01.example.com"
            ],
            "perdue_level": [
                "2",
                "3"
            ],
            "purdue_level": [
                2,
                3
            ],
            "system": [
                "Windows"
            ]
        },
        "capture_zone": {
            "id": "11111111-1111-4111-8111-000000000018"
        },
        "catch_area": {
            "name": "11111111-1111-4111-8111-000000000018"
        },
        "module": "Detection Engine",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000002"
        },
        "sniffer": {
            "name": "11111111-1111-4111-8111-000000000010"
        }
    },
    "source": {
        "address": "203.0.113.254",
        "ip": "203.0.113.254",
        "mac": "02:00:00:00:00:04",
        "port": 53
    }
}

{
    "message": "{\"device\": [], \"event\": {\"code\": [], \"severity\": 1, \"outcome\": \"unknown\", \"created\": \"2025-03-12T08:51:28.586238Z\", \"category\": [\"info\"], \"ingested\": \"2025-03-12T08:51:28.586238Z\", \"kind\": \"alert\", \"type\": [\"info\"]}, \"forwarders\": [\"fw_sekoiaIO\"], \"destination\": {\"vendor\": \"Fortinet, Inc.\", \"port\": 58629, \"ip\": \"192.0.2.100\", \"mac\": \"02:00:00:00:00:05\"}, \"skt\": {\"module\": \"Other\", \"sniffer\": \"11111111-1111-4111-8111-000000000010\", \"assets\": [{\"first_seen\": \"2025-03-05T12:37:56.174487Z\", \"last_seen\": \"2025-03-12T08:50:59.469469Z\", \"name\": \"fw01.example.com\", \"category\": \"IT\", \"hardware_vendor\": \"LANNER ELECTRONICS, INC.\", \"level\": 0, \"primary_ip\": \"11111111-1111-4111-8111-000000000011\", \"id\": \"11111111-1111-4111-8111-000000000014\", \"entity\": \"router\", \"description\": \"pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64\", \"localisation\": \"lab-192-0-2-101-ge-1-26.example.org\"}, {\"system\": \"Windows\", \"first_seen\": \"2025-03-05T12:37:56.077529Z\", \"last_seen\": \"2025-03-12T08:51:00.348Z\", \"name\": \"gw01.example.com\", \"category\": \"IT\", \"hardware_vendor\": \"VMware, Inc.\", \"level\": 3, \"primary_ip\": \"11111111-1111-4111-8111-000000000004\", \"id\": \"11111111-1111-4111-8111-000000000012\", \"entity\": \"router\", \"localisation\": \"lab-192-0-2-121-1-2-1.example.org\"}], \"capture_zone\": \"11111111-1111-4111-8111-000000000018\", \"session\": \"00000000000000000000000000000002\", \"alert_id\": \"11111111-1111-4111-8111-000000000003\", \"sensor\": \"SENSOR-0\"}, \"@timestamp\": \"2025-03-12T08:51:28.586238Z\", \"network\": {\"transport\": \"UDP\", \"protocol\": \"dns\"}, \"@version\": \"1\", \"source\": {\"vendor\": \"LANNER ELECTRONICS, INC.\", \"port\": 53, \"ip\": \"203.0.113.254\", \"mac\": \"02:00:00:00:00:04\"}, \"observer\": {\"name\": \"citadelle-01\", \"vendor\": \"Seckiot\", \"product\": \"Seckiot Citadelle\", \"_type\": \"NIDS\", \"version\": \"\"}, \"rule\": {\"description\": \"Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.\", \"uuid\": \"51186749-7415-46be-90e5-000000000080\", \"name\": \"Network Service Discovery - UDP Scan Port\", \"version\": \"1\", \"author\": \"Seckiot\"}}",
    "event": {
        "ingested": "2025-03-12T08:51:28.586238Z",
        "kind": "alert",
        "provider": "Other",
        "severity": 1,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T08:51:28.586238Z",
    "destination": {
        "address": "192.0.2.100",
        "ip": "192.0.2.100",
        "mac": "02:00:00:00:00:05",
        "port": 58629
    },
    "device": {
        "manufacturer": [
            "LANNER ELECTRONICS, INC.",
            "VMware, Inc."
        ]
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000012",
            "11111111-1111-4111-8111-000000000014"
        ],
        "name": [
            "fw01.example.com",
            "gw01.example.com"
        ],
        "os": {
            "name": [
                "Windows"
            ]
        },
        "type": [
            "router",
            "router"
        ]
    },
    "network": {
        "protocol": "dns",
        "transport": "udp"
    },
    "observer": {
        "ingress": {
            "interface": {
                "id": "11111111-1111-4111-8111-000000000010"
            }
        },
        "name": "citadelle-01",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "192.0.2.100",
            "203.0.113.254"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.",
        "id": "51186749-7415-46be-90e5-000000000080",
        "name": "Network Service Discovery - UDP Scan Port",
        "uuid": "51186749-7415-46be-90e5-000000000080",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000003"
        },
        "assets": {
            "category": [
                "IT",
                "IT"
            ],
            "description": [
                "pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64"
            ],
            "entity": [
                "router",
                "router"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000012",
                "11111111-1111-4111-8111-000000000014"
            ],
            "localisation": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ],
            "name": [
                "fw01.example.com",
                "gw01.example.com"
            ],
            "perdue_level": [
                "0",
                "3"
            ],
            "purdue_level": [
                0,
                3
            ],
            "system": [
                "Windows"
            ]
        },
        "capture_zone": {
            "id": "11111111-1111-4111-8111-000000000018"
        },
        "catch_area": {
            "name": "11111111-1111-4111-8111-000000000018"
        },
        "module": "Other",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000002"
        },
        "sniffer": {
            "name": "11111111-1111-4111-8111-000000000010"
        }
    },
    "source": {
        "address": "203.0.113.254",
        "ip": "203.0.113.254",
        "mac": "02:00:00:00:00:04",
        "port": 53
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":1,\"outcome\":\"unknown\",\"created\":\"2025-03-12T08:51:28.586238Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T08:51:28.586238Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"destination\":{\"vendor\":\"Fortinet, Inc.\",\"port\":58629,\"ip\":\"192.0.2.100\",\"mac\":\"02:00:00:00:00:05\"},\"skt\":{\"module\":\"Detection Engine\",\"sniffer\":\"11111111-1111-4111-8111-000000000010\",\"assets\":[{\"first_seen\":\"2025-03-05T12:37:56.174487Z\",\"last_seen\":\"2025-03-12T08:50:59.469469Z\",\"name\":\"fw01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"LANNER ELECTRONICS, INC.\",\"level\":3,\"primary_ip\":\"11111111-1111-4111-8111-000000000011\",\"id\":\"11111111-1111-4111-8111-000000000014\",\"entity\":\"router\",\"description\":\"pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64\",\"localisation\":\"lab-192-0-2-101-ge-1-26.example.org\"},{\"system\":\"Windows\",\"first_seen\":\"2025-03-05T12:37:56.077529Z\",\"last_seen\":\"2025-03-12T08:51:00.348Z\",\"name\":\"gw01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"level\":3,\"primary_ip\":\"11111111-1111-4111-8111-000000000004\",\"id\":\"11111111-1111-4111-8111-000000000012\",\"entity\":\"router\",\"localisation\":\"lab-192-0-2-121-1-2-1.example.org\"}],\"capture_zone\":\"11111111-1111-4111-8111-000000000018\",\"session\":\"00000000000000000000000000000002\",\"alert_id\":\"11111111-1111-4111-8111-000000000003\",\"sensor\":\"SENSOR-0\"},\"@timestamp\":\"2025-03-12T08:51:28.586238Z\",\"network\":{\"transport\":\"UDP\",\"protocol\":\"dns\"},\"@version\":\"1\",\"source\":{\"vendor\":\"LANNER ELECTRONICS, INC.\",\"port\":53,\"ip\":\"203.0.113.254\",\"mac\":\"02:00:00:00:00:04\"},\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"rule\":{\"description\":\"Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.\",\"uuid\":\"51186749-7415-46be-90e5-000000000080\",\"name\":\"Network Service Discovery - UDP Scan Port\",\"version\":\"1\",\"author\":\"Seckiot\"}}\n",
    "event": {
        "category": [
            "intrusion_detection"
        ],
        "ingested": "2025-03-12T08:51:28.586238Z",
        "kind": "alert",
        "provider": "Detection Engine",
        "severity": 1,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T08:51:28.586238Z",
    "destination": {
        "address": "192.0.2.100",
        "ip": "192.0.2.100",
        "mac": "02:00:00:00:00:05",
        "port": 58629
    },
    "device": {
        "manufacturer": [
            "LANNER ELECTRONICS, INC.",
            "VMware, Inc."
        ]
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000012",
            "11111111-1111-4111-8111-000000000014"
        ],
        "name": [
            "fw01.example.com",
            "gw01.example.com"
        ],
        "os": {
            "name": [
                "Windows"
            ]
        },
        "type": [
            "router",
            "router"
        ]
    },
    "network": {
        "protocol": "dns",
        "transport": "udp"
    },
    "observer": {
        "ingress": {
            "interface": {
                "id": "11111111-1111-4111-8111-000000000010"
            }
        },
        "name": "SENSOR-0",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "192.0.2.100",
            "203.0.113.254"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "Large number of requests sent from the same machine to the same machine on different ports using only a UDP packet to see if the port is open or closed. This is typically used by the tool NMAP.",
        "id": "51186749-7415-46be-90e5-000000000080",
        "name": "Network Service Discovery - UDP Scan Port",
        "uuid": "51186749-7415-46be-90e5-000000000080",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000003"
        },
        "assets": {
            "category": [
                "IT",
                "IT"
            ],
            "description": [
                "pfSense fw01.example.com 2.7.0-RELEASE FreeBSD 14.0-CURRENT amd64"
            ],
            "entity": [
                "router",
                "router"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000012",
                "11111111-1111-4111-8111-000000000014"
            ],
            "localisation": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ],
            "name": [
                "fw01.example.com",
                "gw01.example.com"
            ],
            "perdue_level": [
                "3",
                "3"
            ],
            "purdue_level": [
                3,
                3
            ],
            "system": [
                "Windows"
            ]
        },
        "capture_zone": {
            "id": "11111111-1111-4111-8111-000000000018"
        },
        "catch_area": {
            "name": "11111111-1111-4111-8111-000000000018"
        },
        "module": "Detection Engine",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000002"
        },
        "sniffer": {
            "name": "11111111-1111-4111-8111-000000000010"
        }
    },
    "source": {
        "address": "203.0.113.254",
        "ip": "203.0.113.254",
        "mac": "02:00:00:00:00:04",
        "port": 53
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":1,\"outcome\":\"unknown\",\"created\":\"2025-03-12T07:31:28.525356Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T07:31:28.525356Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"destination\":{\"vendor\":\"VMware, Inc.\",\"port\":4739,\"ip\":\"198.51.100.1\",\"mac\":\"02:00:00:00:00:02\"},\"skt\":{\"module\":\"Detection Engine\",\"sniffer\":\"11111111-1111-4111-8111-000000000010\",\"assets\":[{\"system\":\"Windows\",\"first_seen\":\"2025-03-05T12:37:56.077529Z\",\"last_seen\":\"2025-03-12T07:31:12.375646Z\",\"name\":\"gw01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"level\":3,\"primary_ip\":\"11111111-1111-4111-8111-000000000004\",\"id\":\"11111111-1111-4111-8111-000000000012\",\"entity\":\"router\",\"localisation\":\"lab-192-0-2-121-1-2-1.example.org\"},{\"first_seen\":\"2025-03-06T13:57:58.838858Z\",\"last_seen\":\"2025-03-12T07:30:53.844522Z\",\"name\":\"fw02.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"Fortinet, Inc.\",\"level\":3,\"primary_ip\":\"11111111-1111-4111-8111-000000000020\",\"id\":\"11111111-1111-4111-8111-000000000001\",\"entity\":\"router\",\"description\":\"Firewall Site 2\",\"localisation\":\"lab-192-0-2-101-ge-1-26.example.org\"},{\"system\":\"Windows Server 2019 Standard\",\"first_seen\":\"2025-03-05T12:37:53.554365Z\",\"last_seen\":\"2025-03-12T07:31:11.928426Z\",\"name\":\"srv02.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"modele\":\"VMware7,1\",\"level\":3,\"version\":\"17763.4737\",\"primary_ip\":\"11111111-1111-4111-8111-000000000006\",\"id\":\"11111111-1111-4111-8111-000000000019\",\"entity\":\"virtual-server\",\"description\":\"\",\"localisation\":\"lab-192-0-2-121-1-2-1.example.org\"},{\"system\":\"Windows 2016+ Server\",\"first_seen\":\"2025-03-06T13:57:57.628789Z\",\"last_seen\":\"2025-03-12T07:31:21.084186Z\",\"name\":\"srv01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"level\":3,\"version\":\"10.0.10011.16384\",\"primary_ip\":\"11111111-1111-4111-8111-000000000008\",\"id\":\"11111111-1111-4111-8111-000000000005\",\"entity\":\"virtual-server\",\"description\":\"\",\"localisation\":\"lab-192-0-2-121-1-2-1.example.org\"},{\"system\":\"Windows Server 2019 Standard\",\"first_seen\":\"2025-03-06T13:49:56.593575Z\",\"last_seen\":\"2025-03-12T07:31:12.347024Z\",\"name\":\"dc01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"modele\":\"VMware7,1\",\"level\":3,\"version\":\"17763.379\",\"primary_ip\":\"11111111-1111-4111-8111-000000000013\",\"id\":\"11111111-1111-4111-8111-000000000002\",\"entity\":\"domain-controller\",\"description\":\"DC 1\",\"localisation\":\"lab-192-0-2-111-gi0-1.example.org\"}],\"capture_zone\":\"11111111-1111-4111-8111-000000000018\",\"session\":\"00000000000000000000000000000003\",\"alert_id\":\"11111111-1111-4111-8111-000000000015\",\"sensor\":\"SENSOR-0\"},\"@timestamp\":\"2025-03-12T07:31:28.525356Z\",\"network\":{\"transport\":\"UDP\",\"protocol\":\"iana_ipfix\"},\"@version\":\"1\",\"source\":{\"vendor\":\"VMware, Inc.\",\"port\":8346,\"ip\":\"198.51.100.254\",\"mac\":\"02:00:00:00:00:01\"},\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"rule\":{\"description\":\"A UDP flood Denial of Service attack involves sending a large number of UDP packets to random ports on a target. This overloads the target's network and resources, leading to performance degradation or unavailability of the service to legitimate users.\",\"uuid\":\"51186749-7415-46be-90e5-000000000087\",\"name\":\"Denial Of Service - UDP Flood\",\"version\":\"1\",\"author\":\"Seckiot\"}}\n",
    "event": {
        "category": [
            "intrusion_detection"
        ],
        "ingested": "2025-03-12T07:31:28.525356Z",
        "kind": "alert",
        "provider": "Detection Engine",
        "severity": 1,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T07:31:28.525356Z",
    "destination": {
        "address": "198.51.100.1",
        "ip": "198.51.100.1",
        "mac": "02:00:00:00:00:02",
        "port": 4739
    },
    "device": {
        "manufacturer": [
            "Fortinet, Inc.",
            "VMware, Inc.",
            "VMware, Inc.",
            "VMware, Inc.",
            "VMware, Inc."
        ],
        "model": {
            "identifier": [
                "VMware7,1",
                "VMware7,1"
            ]
        }
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-111-gi0-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000001",
            "11111111-1111-4111-8111-000000000002",
            "11111111-1111-4111-8111-000000000005",
            "11111111-1111-4111-8111-000000000012",
            "11111111-1111-4111-8111-000000000019"
        ],
        "name": [
            "dc01.example.com",
            "fw02.example.com",
            "gw01.example.com",
            "srv01.example.com",
            "srv02.example.com"
        ],
        "os": {
            "name": [
                "Windows",
                "Windows 2016+ Server",
                "Windows Server 2019 Standard",
                "Windows Server 2019 Standard"
            ],
            "version": [
                "10.0.10011.16384",
                "17763.379",
                "17763.4737"
            ]
        },
        "type": [
            "domain-controller",
            "router",
            "router",
            "virtual-server",
            "virtual-server"
        ]
    },
    "network": {
        "protocol": "iana_ipfix",
        "transport": "udp"
    },
    "observer": {
        "ingress": {
            "interface": {
                "id": "11111111-1111-4111-8111-000000000010"
            }
        },
        "name": "SENSOR-0",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "198.51.100.1",
            "198.51.100.254"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "A UDP flood Denial of Service attack involves sending a large number of UDP packets to random ports on a target. This overloads the target's network and resources, leading to performance degradation or unavailability of the service to legitimate users.",
        "id": "51186749-7415-46be-90e5-000000000087",
        "name": "Denial Of Service - UDP Flood",
        "uuid": "51186749-7415-46be-90e5-000000000087",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000015"
        },
        "assets": {
            "category": [
                "IT",
                "IT",
                "IT",
                "IT",
                "IT"
            ],
            "description": [
                "DC 1",
                "Firewall Site 2"
            ],
            "entity": [
                "domain-controller",
                "router",
                "router",
                "virtual-server",
                "virtual-server"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000001",
                "11111111-1111-4111-8111-000000000002",
                "11111111-1111-4111-8111-000000000005",
                "11111111-1111-4111-8111-000000000012",
                "11111111-1111-4111-8111-000000000019"
            ],
            "localisation": [
                "lab-192-0-2-101-ge-1-26.example.org",
                "lab-192-0-2-111-gi0-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org",
                "lab-192-0-2-121-1-2-1.example.org"
            ],
            "name": [
                "dc01.example.com",
                "fw02.example.com",
                "gw01.example.com",
                "srv01.example.com",
                "srv02.example.com"
            ],
            "perdue_level": [
                "3",
                "3",
                "3",
                "3",
                "3"
            ],
            "purdue_level": [
                3,
                3,
                3,
                3,
                3
            ],
            "system": [
                "Windows",
                "Windows 2016+ Server",
                "Windows Server 2019 Standard",
                "Windows Server 2019 Standard"
            ],
            "version": [
                "10.0.10011.16384",
                "17763.379",
                "17763.4737"
            ]
        },
        "capture_zone": {
            "id": "11111111-1111-4111-8111-000000000018"
        },
        "catch_area": {
            "name": "11111111-1111-4111-8111-000000000018"
        },
        "module": "Detection Engine",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000003"
        },
        "sniffer": {
            "name": "11111111-1111-4111-8111-000000000010"
        }
    },
    "source": {
        "address": "198.51.100.254",
        "ip": "198.51.100.254",
        "mac": "02:00:00:00:00:01",
        "port": 8346
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":7,\"outcome\":\"unknown\",\"created\":\"2025-03-12T13:34:04.407568Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T13:34:04.407568Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"skt\":{\"module\":\"Cartography\",\"sniffer\":\"\",\"assets\":[{\"name\":\"device01.example.com\",\"first_seen\":\"2025-03-12T13:33:48Z\",\"last_seen\":\"2025-03-12T13:34:04.348385Z\",\"id\":\"11111111-1111-4111-8111-000000000024\"}],\"capture_zone\":\"\",\"alert_id\":\"11111111-1111-4111-8111-000000000016\",\"sensor\":\"\"},\"@timestamp\":\"2025-03-12T13:34:04.407568Z\",\"rule\":{\"description\":\"Asset `203.0.113.11` created\",\"uuid\":\"00000000-0000-0000-0000-000000000001\",\"name\":\"Unknown Device in the Network\",\"version\":\"1\",\"author\":\"Seckiot\"},\"@version\":\"1\"}\n",
    "event": {
        "category": [
            "host"
        ],
        "ingested": "2025-03-12T13:34:04.407568Z",
        "kind": "alert",
        "provider": "Cartography",
        "severity": 7,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T13:34:04.407568Z",
    "host": {
        "id": [
            "11111111-1111-4111-8111-000000000024"
        ],
        "name": [
            "device01.example.com"
        ]
    },
    "observer": {
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "rule": {
        "author": "Seckiot",
        "description": "Asset `203.0.113.11` created",
        "id": "00000000-0000-0000-0000-000000000001",
        "name": "Unknown Device in the Network",
        "uuid": "00000000-0000-0000-0000-000000000001",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000016"
        },
        "assets": {
            "id": [
                "11111111-1111-4111-8111-000000000024"
            ],
            "name": [
                "device01.example.com"
            ]
        },
        "module": "Cartography"
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":1,\"outcome\":\"unknown\",\"created\":\"2025-03-12T09:29:10.485097Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T09:29:10.485097Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"destination\":{\"ip\":\"198.51.100.82\",\"port\":443},\"skt\":{\"module\":\"Cartography\",\"sniffer\":\"br0\",\"assets\":[{\"name\":\"device02.example.com\",\"first_seen\":\"2025-03-12T09:28:40Z\",\"last_seen\":\"2025-03-12T09:29:09.346448Z\",\"id\":\"11111111-1111-4111-8111-000000000022\"},{\"system\":\"Windows 2016+ Server\",\"first_seen\":\"2025-03-05T12:37:53.554365Z\",\"last_seen\":\"2025-03-12T09:29:07.350067Z\",\"name\":\"wks01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"level\":3,\"version\":\"10.0.10011.16384\",\"primary_ip\":\"11111111-1111-4111-8111-000000000007\",\"id\":\"11111111-1111-4111-8111-000000000009\",\"entity\":\"virtual-server\",\"description\":\"\",\"localisation\":\"lab-192-0-2-111-gi0-1.example.org\"}],\"capture_zone\":\"default\",\"session\":\"00000000000000000000000000000001\",\"alert_id\":\"11111111-1111-4111-8111-000000000017\",\"sensor\":\"SENSOR-0\"},\"@timestamp\":\"2025-03-12T09:29:10.485097Z\",\"network\":{\"protocol\":\"TLS\"},\"@version\":\"1\",\"source\":{\"vendor\":\"VMware, Inc.\",\"port\":50335,\"ip\":\"192.0.2.50\",\"mac\":\"02:00:00:00:00:03\"},\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"rule\":{\"description\":\"New link detected between WKS01 and 198.51.100.82\",\"uuid\":\"00000000-0000-0000-0000-000000000012\",\"name\":\"New Link Between Two Assets\",\"version\":\"1\",\"author\":\"Seckiot\"}}\n",
    "event": {
        "category": [
            "network"
        ],
        "ingested": "2025-03-12T09:29:10.485097Z",
        "kind": "alert",
        "provider": "Cartography",
        "severity": 1,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T09:29:10.485097Z",
    "destination": {
        "address": "198.51.100.82",
        "ip": "198.51.100.82",
        "port": 443
    },
    "device": {
        "manufacturer": [
            "VMware, Inc."
        ]
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-111-gi0-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000009",
            "11111111-1111-4111-8111-000000000022"
        ],
        "name": [
            "device02.example.com",
            "wks01.example.com"
        ],
        "os": {
            "name": [
                "Windows 2016+ Server"
            ],
            "version": [
                "10.0.10011.16384"
            ]
        },
        "type": [
            "virtual-server"
        ]
    },
    "network": {
        "protocol": "tls"
    },
    "observer": {
        "ingress": {
            "interface": {
                "name": "br0"
            },
            "zone": "default"
        },
        "name": "SENSOR-0",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "192.0.2.50",
            "198.51.100.82"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "New link detected between WKS01 and 198.51.100.82",
        "id": "00000000-0000-0000-0000-000000000012",
        "name": "New Link Between Two Assets",
        "uuid": "00000000-0000-0000-0000-000000000012",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000017"
        },
        "assets": {
            "category": [
                "IT"
            ],
            "entity": [
                "virtual-server"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000009",
                "11111111-1111-4111-8111-000000000022"
            ],
            "localisation": [
                "lab-192-0-2-111-gi0-1.example.org"
            ],
            "name": [
                "device02.example.com",
                "wks01.example.com"
            ],
            "perdue_level": [
                "3"
            ],
            "purdue_level": [
                3
            ],
            "system": [
                "Windows 2016+ Server"
            ],
            "version": [
                "10.0.10011.16384"
            ]
        },
        "catch_area": {
            "name": "default"
        },
        "module": "Cartography",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000001"
        },
        "sniffer": {
            "name": "br0"
        }
    },
    "source": {
        "address": "192.0.2.50",
        "ip": "192.0.2.50",
        "mac": "02:00:00:00:00:03",
        "port": 50335
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":7,\"outcome\":\"unknown\",\"created\":\"2025-03-12T13:34:06.487415Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-12T13:34:06.487415Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"destination\":{\"ip\":\"203.0.113.11\",\"port\":443},\"skt\":{\"module\":\"Cartography\",\"sniffer\":\"br0\",\"assets\":[{\"name\":\"device01.example.com\",\"first_seen\":\"2025-03-12T13:33:48Z\",\"last_seen\":\"2025-03-12T13:34:04.348385Z\",\"id\":\"11111111-1111-4111-8111-000000000024\"}],\"capture_zone\":\"default\",\"session\":\"00000000000000000000000000000004\",\"alert_id\":\"11111111-1111-4111-8111-000000000023\",\"sensor\":\"SENSOR-0\"},\"@timestamp\":\"2025-03-12T13:34:06.487415Z\",\"network\":{\"protocol\":\"TLS\"},\"@version\":\"1\",\"source\":{\"vendor\":\"VMware, Inc.\",\"port\":50569,\"ip\":\"203.0.113.1\",\"mac\":\"02:00:00:00:00:01\"},\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"rule\":{\"description\":\"New server port 203.0.113.11:443 (default) detected on 203.0.113.11\",\"uuid\":\"00000000-0000-0000-0000-000000000002\",\"name\":\"New Open Server Port\",\"version\":\"1\",\"author\":\"Seckiot\"}}\n",
    "event": {
        "category": [
            "network"
        ],
        "ingested": "2025-03-12T13:34:06.487415Z",
        "kind": "alert",
        "provider": "Cartography",
        "severity": 7,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T13:34:06.487415Z",
    "destination": {
        "address": "203.0.113.11",
        "ip": "203.0.113.11",
        "port": 443
    },
    "host": {
        "id": [
            "11111111-1111-4111-8111-000000000024"
        ],
        "name": [
            "device01.example.com"
        ]
    },
    "network": {
        "protocol": "tls"
    },
    "observer": {
        "ingress": {
            "interface": {
                "name": "br0"
            },
            "zone": "default"
        },
        "name": "SENSOR-0",
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "related": {
        "ip": [
            "203.0.113.1",
            "203.0.113.11"
        ]
    },
    "rule": {
        "author": "Seckiot",
        "description": "New server port 203.0.113.11:443 (default) detected on 203.0.113.11",
        "id": "00000000-0000-0000-0000-000000000002",
        "name": "New Open Server Port",
        "uuid": "00000000-0000-0000-0000-000000000002",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000023"
        },
        "assets": {
            "id": [
                "11111111-1111-4111-8111-000000000024"
            ],
            "name": [
                "device01.example.com"
            ]
        },
        "catch_area": {
            "name": "default"
        },
        "module": "Cartography",
        "sensor": {
            "name": "SENSOR-0"
        },
        "session": {
            "id": "00000000000000000000000000000004"
        },
        "sniffer": {
            "name": "br0"
        }
    },
    "source": {
        "address": "203.0.113.1",
        "ip": "203.0.113.1",
        "mac": "02:00:00:00:00:01",
        "port": 50569
    }
}

{
    "message": "{\"device\": [], \"event\": {\"code\": [], \"severity\": 7, \"outcome\": \"unknown\", \"created\": \"2025-03-12T13:34:04.407568Z\", \"category\": [\"info\"], \"ingested\": \"2025-03-12T13:34:04.407568Z\", \"kind\": \"alert\", \"type\": [\"info\"]}, \"forwarders\": [\"fw_sekoiaIO\"], \"observer\": {\"name\": \"\", \"vendor\": \"Seckiot\", \"product\": \"Seckiot Citadelle\", \"_type\": \"NIDS\", \"version\": \"\"}, \"skt\": {\"module\": \"Cartography\", \"sniffer\": \"\", \"assets\": [], \"capture_zone\": \"\", \"alert_id\": \"11111111-1111-4111-8111-000000000016\", \"sensor\": \"\"}, \"@timestamp\": \"2025-03-12T13:34:04.407568Z\", \"rule\": {\"description\": \"Asset `203.0.113.11` created\", \"uuid\": \"00000000-0000-0000-0000-000000000001\", \"name\": \"Unknown Device in the Network\", \"version\": \"1\", \"author\": \"Seckiot\"}, \"@version\": \"1\"}",
    "event": {
        "category": [
            "host"
        ],
        "ingested": "2025-03-12T13:34:04.407568Z",
        "kind": "alert",
        "provider": "Cartography",
        "severity": 7,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-12T13:34:04.407568Z",
    "observer": {
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "rule": {
        "author": "Seckiot",
        "description": "Asset `203.0.113.11` created",
        "id": "00000000-0000-0000-0000-000000000001",
        "name": "Unknown Device in the Network",
        "uuid": "00000000-0000-0000-0000-000000000001",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000016"
        },
        "module": "Cartography"
    }
}

{
    "message": "{\"device\":[],\"event\":{\"code\":[],\"severity\":7,\"outcome\":\"unknown\",\"created\":\"2025-03-06T14:05:57.457022Z\",\"category\":[\"info\"],\"ingested\":\"2025-03-06T14:05:57.457022Z\",\"kind\":\"alert\",\"type\":[\"info\"]},\"forwarders\":[\"fw_sekoiaIO\"],\"observer\":{\"name\":\"\",\"vendor\":\"Seckiot\",\"product\":\"Seckiot Citadelle\",\"_type\":\"NIDS\",\"version\":\"\"},\"skt\":{\"module\":\"CVE\",\"sniffer\":\"\",\"assets\":[{\"system\":\"Windows Server 2019 Standard\",\"first_seen\":\"2025-03-06T13:49:56.593575Z\",\"last_seen\":\"2025-03-06T14:05:55.420426Z\",\"name\":\"dc01.example.com\",\"category\":\"IT\",\"hardware_vendor\":\"VMware, Inc.\",\"modele\":\"VMware7,1\",\"level\":3,\"version\":\"17763.379\",\"primary_ip\":\"11111111-1111-4111-8111-000000000013\",\"id\":\"11111111-1111-4111-8111-000000000002\",\"entity\":\"domain-controller\",\"description\":\"DC 1\",\"localisation\":\"lab-192-0-2-111-gi0-1.example.org\"}],\"capture_zone\":\"\",\"alert_id\":\"11111111-1111-4111-8111-000000000021\",\"sensor\":\"\"},\"vulnerability\":{\"severity\":\"medium\",\"scanner\":{\"vendor\":\"Seckiot\"},\"reference\":\"http://example.org/exploits/26528/,http://example.org/exploits/26528/\",\"enumeration\":\"CVE\",\"id\":\"CVE-2013-1414\",\"description\":\"New vulnerability CVE-2013-1414 detected on DC01\",\"score\":{\"base\":\"5.1\",\"version\":\"3.1\"},\"category\":null,\"classification\":\"CVSS\"},\"@timestamp\":\"2025-03-06T14:05:57.457022Z\",\"rule\":{\"description\":\"New vulnerability CVE-2013-1414 detected on DC01\",\"uuid\":\"00000000-0000-0000-0000-000000000003\",\"name\":\"Nouvelle Vuln\u00e9rabilit\u00e9 D\u00e9couverte\",\"version\":\"1\",\"author\":\"seckiot\"},\"@version\":\"1\"}\n",
    "event": {
        "category": [
            "vulnerability"
        ],
        "ingested": "2025-03-06T14:05:57.457022Z",
        "kind": "alert",
        "provider": "CVE",
        "severity": 7,
        "type": [
            "info"
        ]
    },
    "@timestamp": "2025-03-06T14:05:57.457022Z",
    "device": {
        "manufacturer": [
            "VMware, Inc."
        ],
        "model": {
            "identifier": [
                "VMware7,1"
            ]
        }
    },
    "host": {
        "geo": {
            "name": [
                "lab-192-0-2-111-gi0-1.example.org"
            ]
        },
        "id": [
            "11111111-1111-4111-8111-000000000002"
        ],
        "name": [
            "dc01.example.com"
        ],
        "os": {
            "name": [
                "Windows Server 2019 Standard"
            ],
            "version": [
                "17763.379"
            ]
        },
        "type": [
            "domain-controller"
        ]
    },
    "observer": {
        "product": "Seckiot Citadelle",
        "type": "NIDS",
        "vendor": "Seckiot"
    },
    "rule": {
        "author": "seckiot",
        "description": "New vulnerability CVE-2013-1414 detected on DC01",
        "id": "00000000-0000-0000-0000-000000000003",
        "name": "Nouvelle Vuln\u00e9rabilit\u00e9 D\u00e9couverte",
        "uuid": "00000000-0000-0000-0000-000000000003",
        "version": "1"
    },
    "seckiot": {
        "alert": {
            "id": "11111111-1111-4111-8111-000000000021"
        },
        "assets": {
            "category": [
                "IT"
            ],
            "description": [
                "DC 1"
            ],
            "entity": [
                "domain-controller"
            ],
            "id": [
                "11111111-1111-4111-8111-000000000002"
            ],
            "localisation": [
                "lab-192-0-2-111-gi0-1.example.org"
            ],
            "name": [
                "dc01.example.com"
            ],
            "perdue_level": [
                "3"
            ],
            "purdue_level": [
                3
            ],
            "system": [
                "Windows Server 2019 Standard"
            ],
            "version": [
                "17763.379"
            ]
        },
        "module": "CVE"
    },
    "vulnerability": {
        "classification": "CVSS",
        "description": "New vulnerability CVE-2013-1414 detected on DC01",
        "enumeration": "CVE",
        "id": "CVE-2013-1414",
        "reference": "http://example.org/exploits/26528/,http://example.org/exploits/26528/",
        "scanner": {
            "vendor": "Seckiot"
        },
        "score": {
            "base": 5.1,
            "version": "3.1"
        },
        "severity": "medium"
    }
}

Extracted Fields

The following table lists the fields that are extracted, normalized under the ECS format, analyzed and indexed by the parser. It should be noted that infered fields are not listed.

Name	Type	Description
@timestamp	date	Date/time when the event originated.
destination.ip	ip	IP address of the destination.
destination.mac	keyword	MAC address of the destination.
destination.port	long	Port of the destination.
event.ingested	date	Timestamp when an event arrived in the central data store.
event.kind	keyword	The kind of the event. The highest categorization field in the hierarchy.
event.outcome	keyword	The outcome of the event. The lowest level categorization field in the hierarchy.
event.provider	keyword	Source of the event.
event.severity	long	Numeric severity of the event.
event.type	keyword	Event type. The third categorization field in the hierarchy.
host.geo.name	keyword	User-defined description of a location.
host.id	keyword	Unique host id.
host.name	keyword	Name of the host.
host.os.name	keyword	Operating system name, without the version.
host.os.version	keyword	Operating system version as a raw string.
host.type	keyword	Type of host.
network.protocol	keyword	Application protocol name.
network.transport	keyword	Protocol Name corresponding to the field iana_number.
observer.ingress.interface.id	keyword	Interface ID
observer.ingress.interface.name	keyword	Interface name
observer.ingress.zone	keyword	Observer ingress zone
observer.name	keyword	Custom name of the observer.
observer.product	keyword	The product name of the observer.
observer.type	keyword	The type of the observer the data is coming from.
observer.vendor	keyword	Vendor name of the observer.
observer.version	keyword	Observer version.
rule.author	keyword	Rule author
rule.description	keyword	Rule description
rule.id	keyword	Rule ID
rule.name	keyword	Rule name
rule.uuid	keyword	Rule UUID
rule.version	keyword	Rule version
seckiot.alert.id	keyword	Unique ID of the alert
seckiot.assets.category	keyword	Category of the assets involved in the alert (IT/OT/IOT)
seckiot.assets.description	keyword	Description of the assets involved in the alert
seckiot.assets.entity	text	(deprecated) use host.type - Entity of the assets involved in the alert
seckiot.assets.id	text	(deprecated) use host.id - Unique ID of the assets involved in the alert
seckiot.assets.localisation	text	(deprecated) use host.geo.name - Localisation of the assets involved in the alert
seckiot.assets.name	text	(deprecated) use host.name - Name of the assets involved in the alert
seckiot.assets.perdue_level	text	(deprecated) use seckiot.assets.purdue_level - Purdue level (0 to 6) of the assets involved in the alert
seckiot.assets.purdue_level	long	Purdue level (0 to 6) of the assets involved in the alert
seckiot.assets.system	text	(deprecated) use host.os.name - Operating system name of the assets involved in the alert
seckiot.assets.version	text	(deprecated) use host.os.version - Operating system version of the assets involved in the alert
seckiot.capture_zone.id	keyword	Identifier (UUID) of the capture zone where the traffic was observed
seckiot.catch_area.name	text	(deprecated) use observer.ingress.zone or seckiot.capture_zone.id - Name or UUID of the capture zone where the traffic was observed
seckiot.module	text	(deprecated) use event.provider - Seckiot module that raised the alert
seckiot.sensor.name	text	(deprecated) use observer.name - Name of the sensor that captured the traffic
seckiot.session.id	keyword	Identifier of the network session that triggered the alert
seckiot.sniffer.name	text	(deprecated) use observer.ingress.interface.name or observer.ingress.interface.id - Name or UUID of the sniffer that captured the traffic
source.ip	ip	IP address of the source.
source.mac	keyword	MAC address of the source.
source.port	long	Port of the source.
vulnerability.category	keyword	Category of a vulnerability.
vulnerability.classification	keyword	Classification of the vulnerability.
vulnerability.description	keyword	Description of the vulnerability.
vulnerability.enumeration	keyword	Identifier of the vulnerability.
vulnerability.id	keyword	ID of the vulnerability.
vulnerability.reference	keyword	Reference of the vulnerability.
vulnerability.report_id	keyword	Scan identification number.
vulnerability.scanner.vendor	keyword	Name of the scanner vendor.
vulnerability.score.base	float	Vulnerability Base score.
vulnerability.score.environmental	float	Vulnerability Environmental score.
vulnerability.score.temporal	float	Vulnerability Temporal score.
vulnerability.score.version	keyword	CVSS version.
vulnerability.severity	keyword	Severity of the vulnerability.

For more information on the Intake Format, please find the code of the Parser, Smart Descriptions, and Supported Events here.
